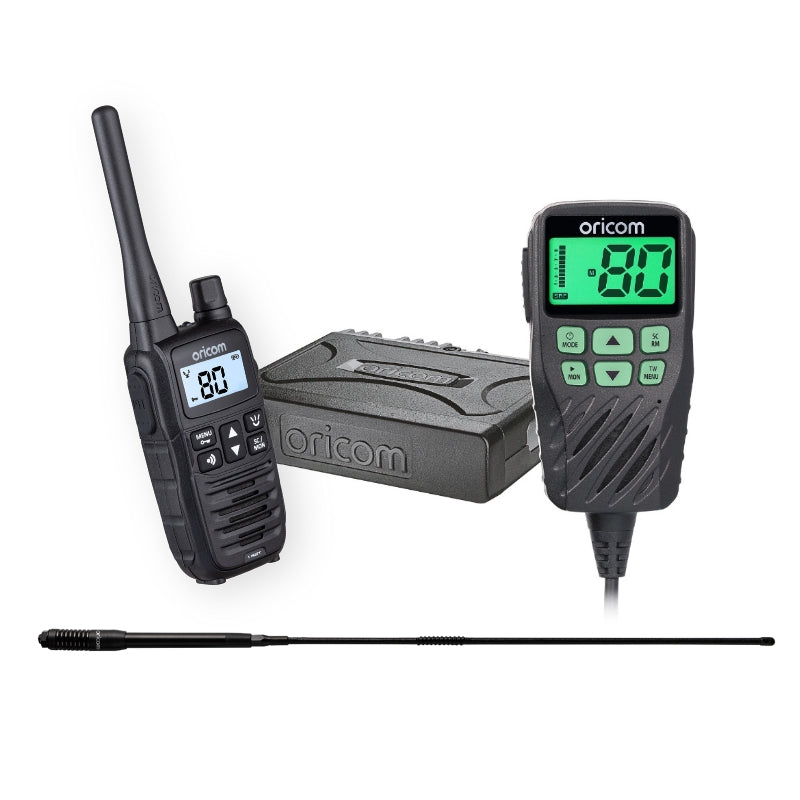

UHF360RAH UHF CB Radio Value Pack
100% Aussie Owned
Free Delivery Over $99
Trusted Local Support

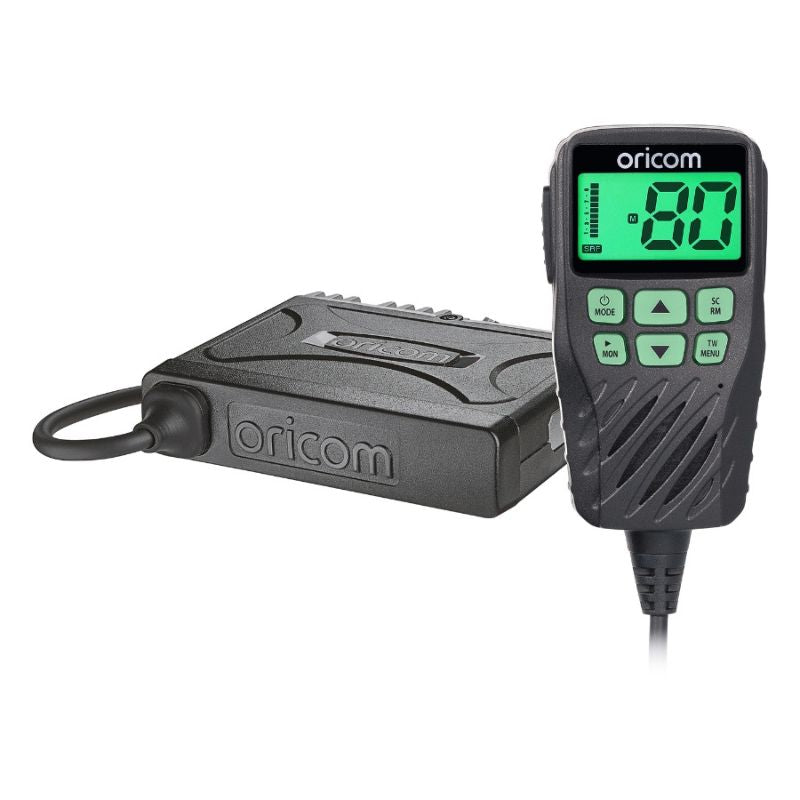

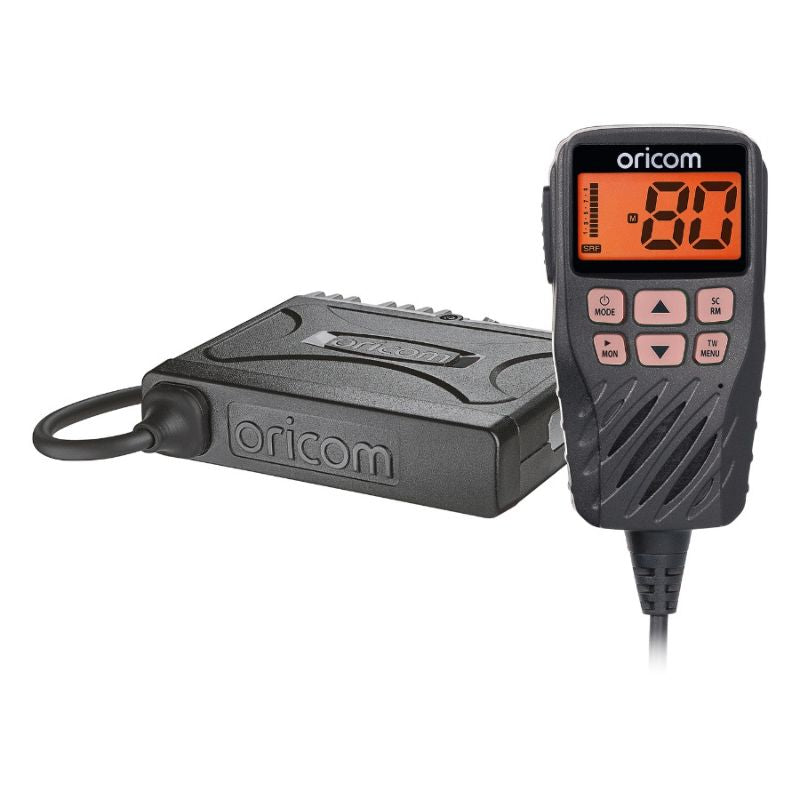

UHF360R UHF CB Radio with Controller Speaker Microphone

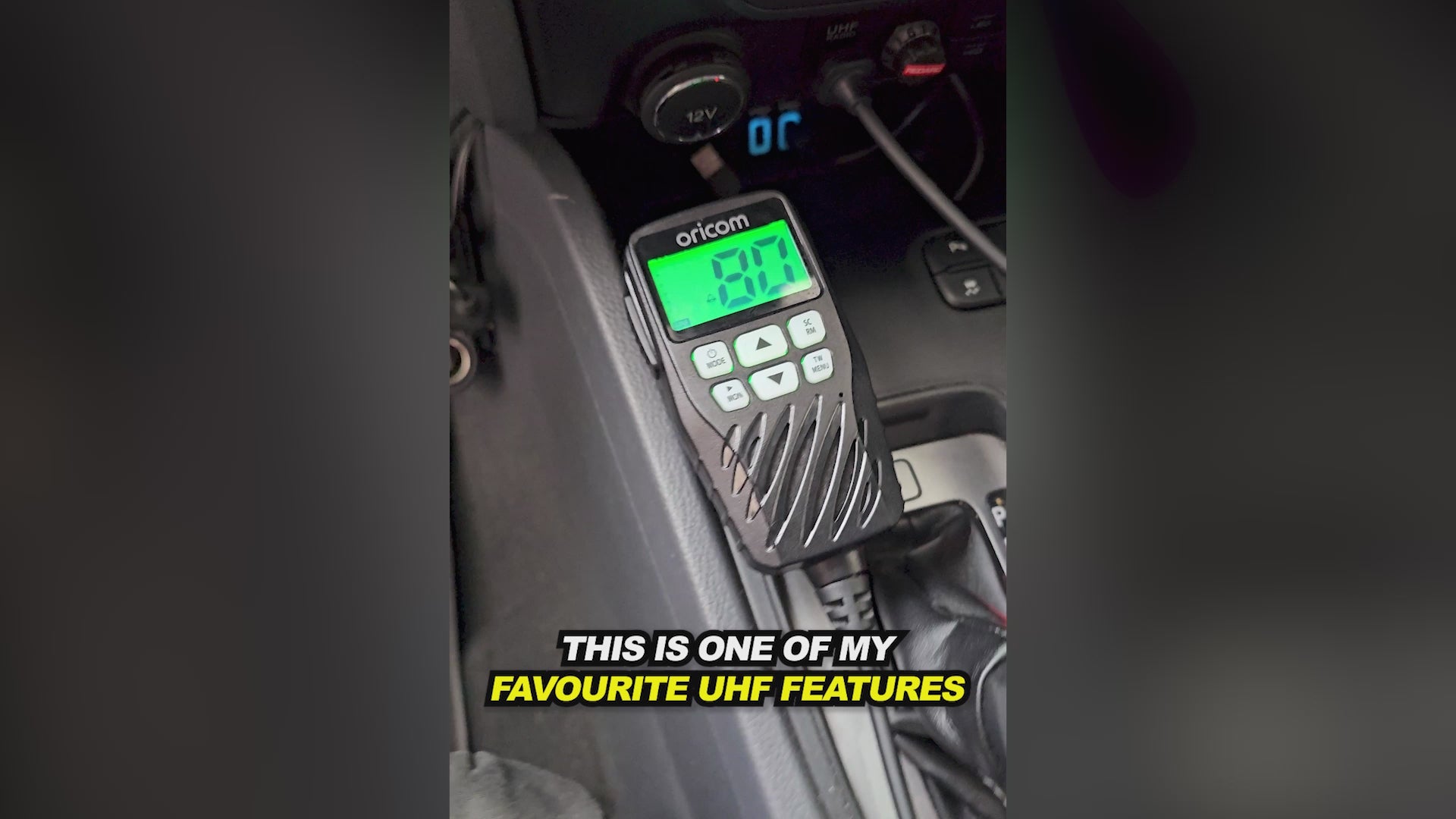

Never Miss a Word with Instant Replay
Stay connected and never miss important messages with the Oricom UHF360R UHF CB Radio, featuring the Instant Replay function. Perfect for off-road enthusiasts, this radio lets you replay a missed transmission with just a press of a button, ensuring that you don’t miss any critical information while navigating the trails or on the road. The durable design, combined with a controller speaker mic for easy access to key features, offers convenience and reliability in challenging environments. With clear, crisp communication and the added advantage of Instant Replay, the Oricom UHF360R is a must-have for every adventurer and driver.
Product Details
Key Features:
- 5 watt (max TX power)
- Instant replay (With up to 10 mins of recording)

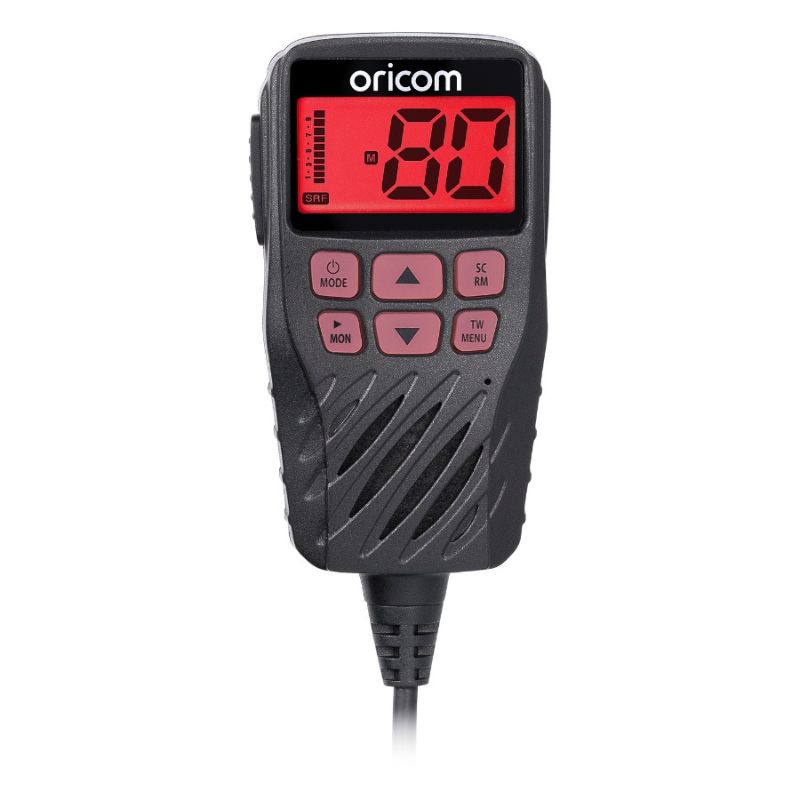

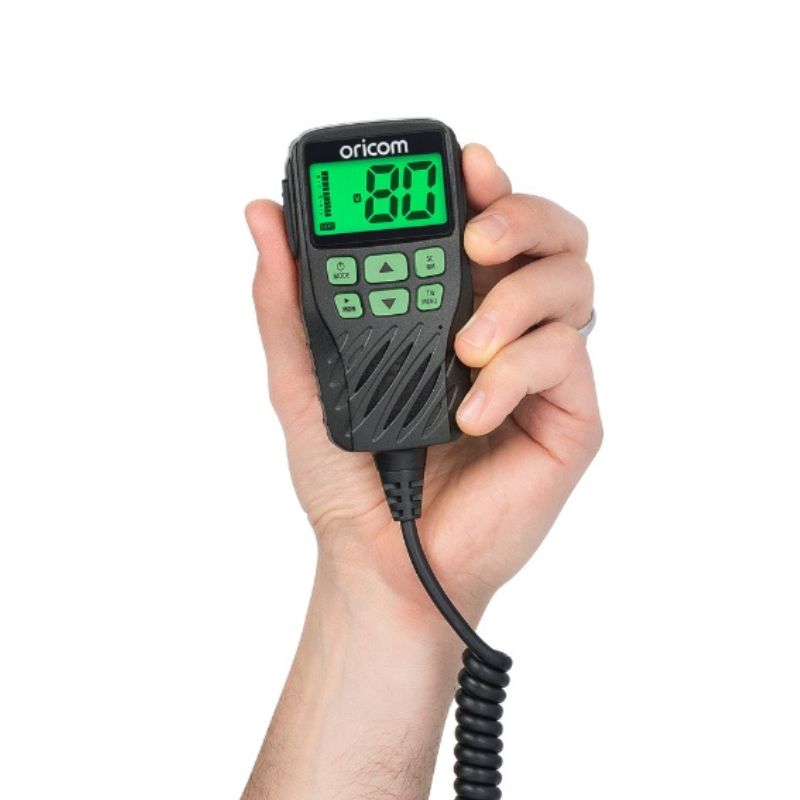

- Heavy duty controller speaker microphone
- Rugged micro size transceiver
- Large easy to read LCD display
- Audio equaliser
- 38 CTCSS and 104 DCS codes
- Duplex (range extender)
- Open/Priority scan
- Priority channel
- Tri colour backlit LCD display (Amber/Red/Green)
- 3.5mm external speaker jack
- Transceiver Dimensions 27 (h) x 102 (w) x 85 (d) mm
- Designed for Australian conditions. Made in Korea.
- 5 Year Manufacturers Warranty.
Antenna Key Features:
- 6.5dBi Black Antenna
- High-gain low SWR antenna gives the best “all-round” transmit and receive performance
- Elevated feed, counter balanced spring and solid black fiberglass whip
- Coaxial Cable length: 4.5m
- Antenna Length: 830mm

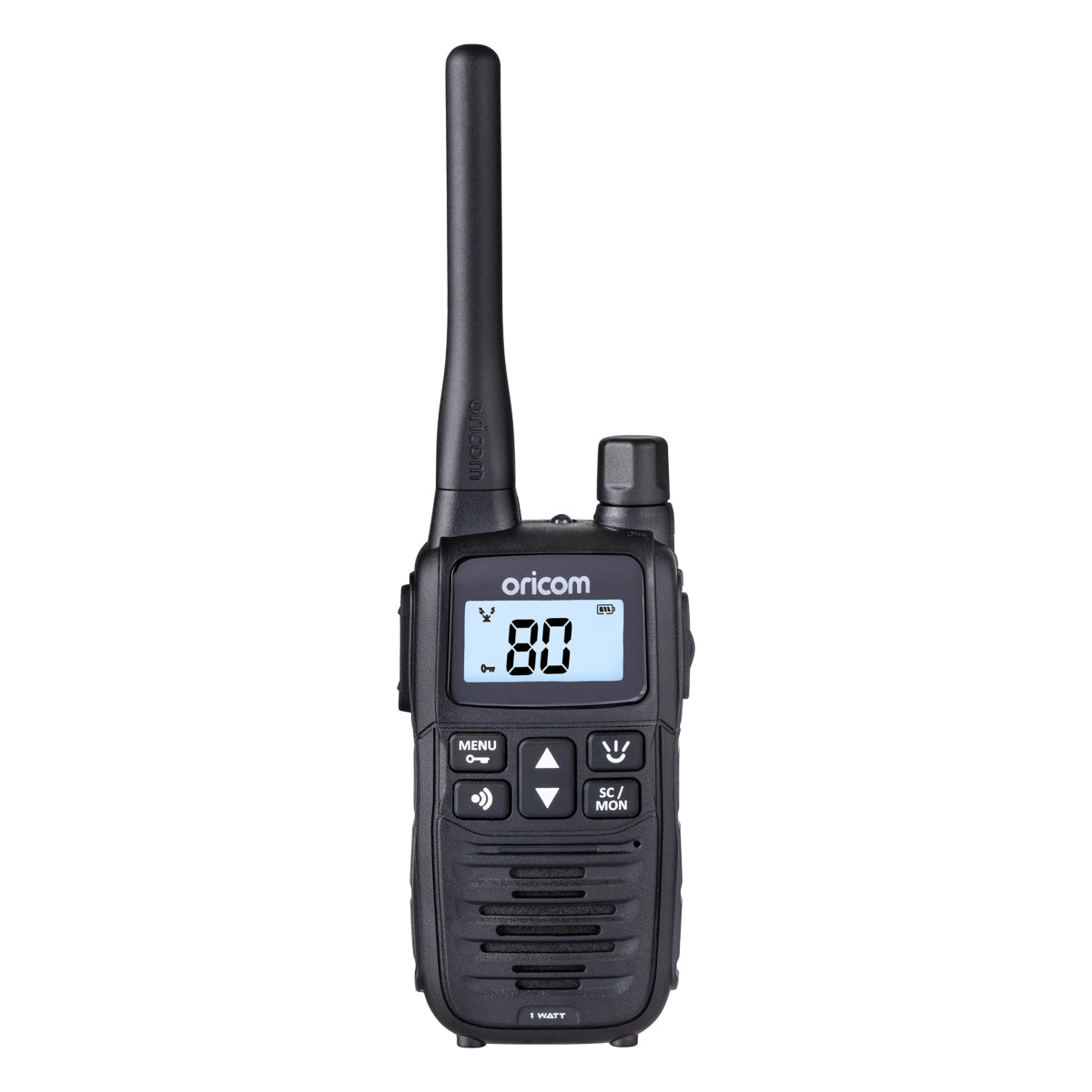

Handheld Key Features:
- 1 watt transmit power
- LED torch
- 80 channels
- Duplex (range extender)
- 38 CTCSS & 83 DCS codes
- Backlit display
- Dual watch
- Channel scan
- Automatic squelch control
- Keypad lock
- Hands-free (VOX) capable
- 3 Year Manufacturers Warranty
Files
Accessories/Spare parts
Product registration
Additional Information
- Frequently Asked Questions
- Videos Guides
What are the black rubber washers for?
The black rubber washers are to be placed between the radio and mounting bracket to provide resistance to movement but still allow the position of the radio to be adjusted.
I am transmitting on my radio and the other party can’t hear me?
If you are using channels 1 to 8 or 41 to 48 you could be transmitting in Duplex mode, turn DPX off or move to another channel.
What is CTCSS?
CTCSS, or Continuous Tone Coded Squelching System, is an option that allows your (s) to only pick up radio signals preceded by a “code”. This option helps to cut down on unwanted radio chatter. This is also known as PL, Private Line, Channel Guard, etc.
If the UHF Radio does not switch on at all?
Check the power lead (wire harness) and fuse.
What is the range of the UHF radio?
The type of antenna you use and where it is mounted on your vehicle will affect the range. A Low gain antenna will give you less range but wider coverage. A high gain antenna will give you greater range but it produces a narrower field which is more directional. Mounting the antenna low on the vehicle will shield the transmission in the directions close to the vehicle, so ideally the antenna needs to be mounted as high as possible.
How far does a UHF radio transmit?
Many factors affect how far a UHFradio will transmit including power of the radio and the environment in which it’s used (e.g. buildings, mountainous and surrounding vegetation can cause range problems).
What is a Repeater?
A Repeater is a Radio Relay Station. It is used when the radio signal needs to be magnified to get the desired distance coverage. It works by receiving a radio signal from one unit, magnifying it and retransmitting the signal to another radio unit. It would be used in an area where coverage was hindered by terrain, buildings or other environmental conditions.
Where are the repeater stations located?
There is a list of repeater stations across Australia. This list and the operational status of the repeaters can change so please check with the ACMA for the latest information on repeaters.
Is this radio suitable for use outside of Australia?
All Oricom products are approved for use in Australia and NZ only, and although they will still work in other countries, they may not meet that countries requirement’s for voltage, operating frequencies or power RF levels and if used may interfere with other services which could attract penalties from the local administration authorities.
