Battery Care

A battery shunt is a low-resistance tool for measuring the current entering and leaving a battery. It functions by producing a little voltage drop across the shunt, which a battery monitor then measures. Providing precise battery performance data and assisting you in tracking the condition and charge levels of your battery, the shunt is a crucial part of many battery monitoring systems.

A 12V shunt is a particular kind of battery shunt made to work with 12-volt battery systems, which are frequently used in Australian automobiles. It makes it possible to measure the current passing through the battery precisely, providing reliable information for tracking and controlling the cycle of charge and discharge of your 12V battery.

A battery shunt plays a critical role in monitoring the current of your battery system. It provides a precise way to measure the flow of electricity in and out of your battery. By creating a small voltage drop across its terminals, the shunt allows your battery monitor to calculate the battery’s state of charge, health, and overall performance.

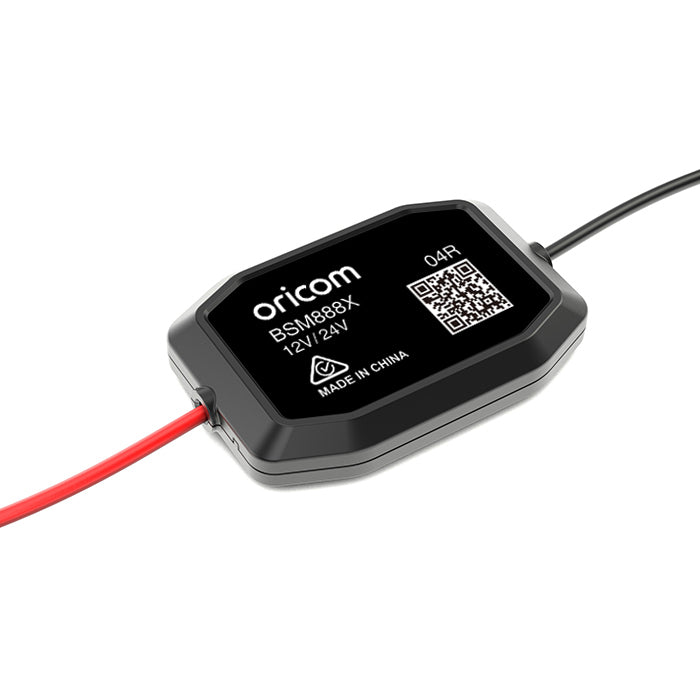

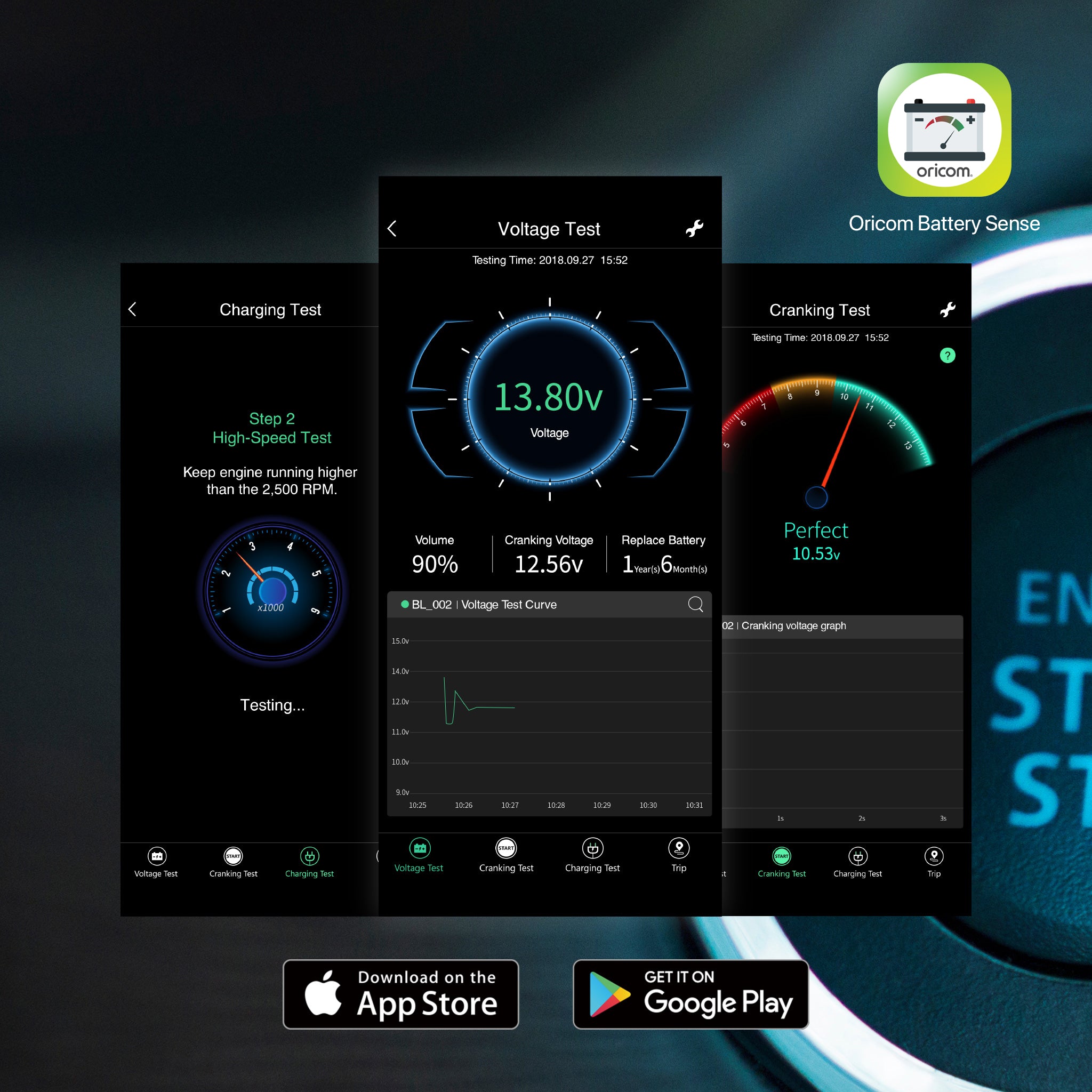

A battery monitor is used to monitor the health of your vehicle’s battery, check vehicle cranking system automatically while engine is starting and check battery charging system (alternator). Your driving log can be viewed which includes driving time and duration. The Oricom BSM888X allows your driving log to be viewed which includes driving time and duration. Using wireless communication, you can now monitor your battery via your smartphone too. The Battery Monitor will send you a notification when you approach your vehicle and will help to prevent vehicle breakdowns and maximise the performance of your battery by giving you valuable information about the state of your battery. This product is designed to be used on standard flooded type lead acid batteries. It may give incorrect information on other types of battery.

Connect the Battery Monitor to a vehicle battery. Connect positive terminal to positive pole, negative terminal to negative pole or to a suitable vehicle earth point. Attach the product to the battery with the tape provided or through other installation method. Clean the area first and make sure it in a position that the signal is not blocked. Final step is to install the Oricom Auto App.

Warning: Make sure that if using a metal tool, not to short the battery terminals or touch the vehicle chassis while fixing the terminals.

A shunt battery monitor is a system that uses a battery shunt to measure the current flowing into and out of the battery. The shunt sends this information to the monitor, which uses it to determine the state of charge and health of the battery. This type of monitor is highly accurate and can give you a detailed overview of your battery’s performance, making it a vital tool for ensuring the longevity of your battery, especially in applications like RVs, off-grid solar systems, or 4WDs.

Yes, a shunt is an essential part of many battery monitoring systems. It enables accurate measurement of the current flowing into and out of the battery, which is crucial for determining the battery’s state of charge and health. While some simpler battery monitors may rely on voltage alone, a shunt battery monitor provides far more accuracy and is often required for systems that need detailed information about battery performance, especially in larger or more complex setups.

Be careful not to disconnect the battery from the vehicle while installing this product, as you may lose some or all of your vehicle security settings.

Every time you start the engine, the Oricom battery monitor will test the cranking system automatically and store the test result. If the cranking voltage is below 7.5V, it means abnormality has been detected. For a 24V system, voltage under 15V will be abnormal. It might be time to replace the battery. Have your vehicle’s battery checked.

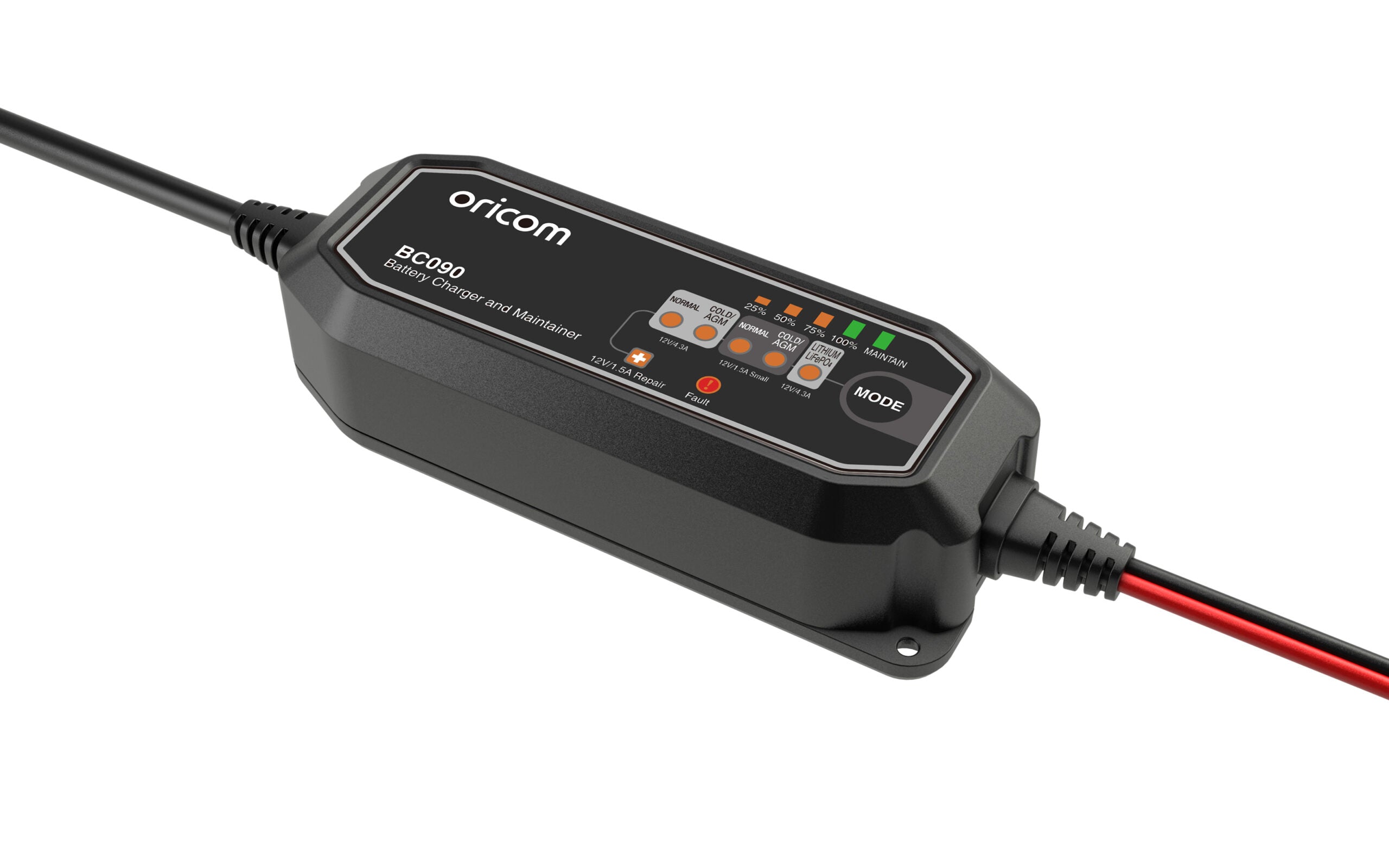

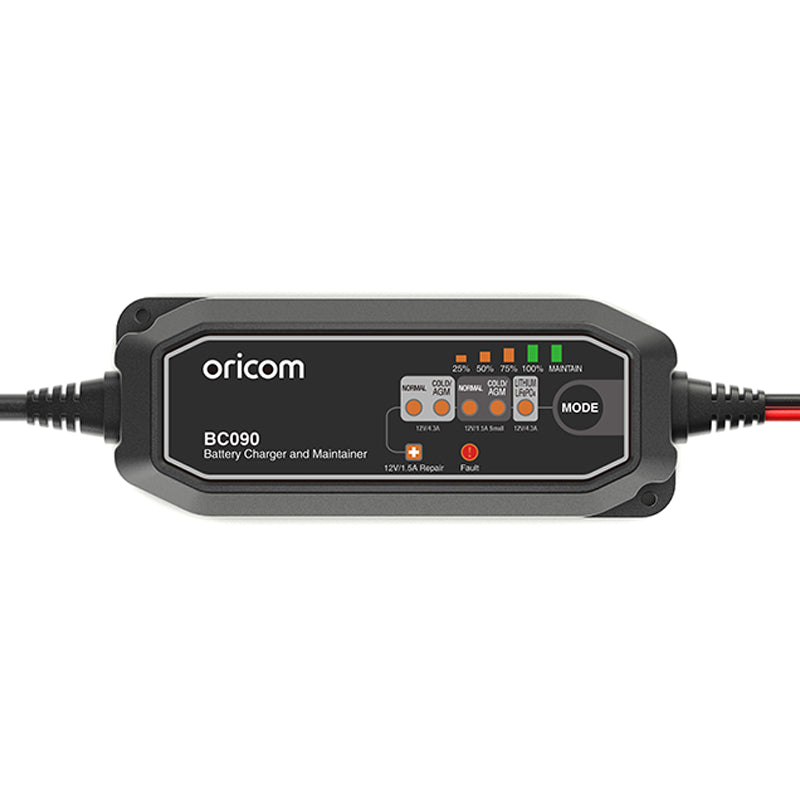

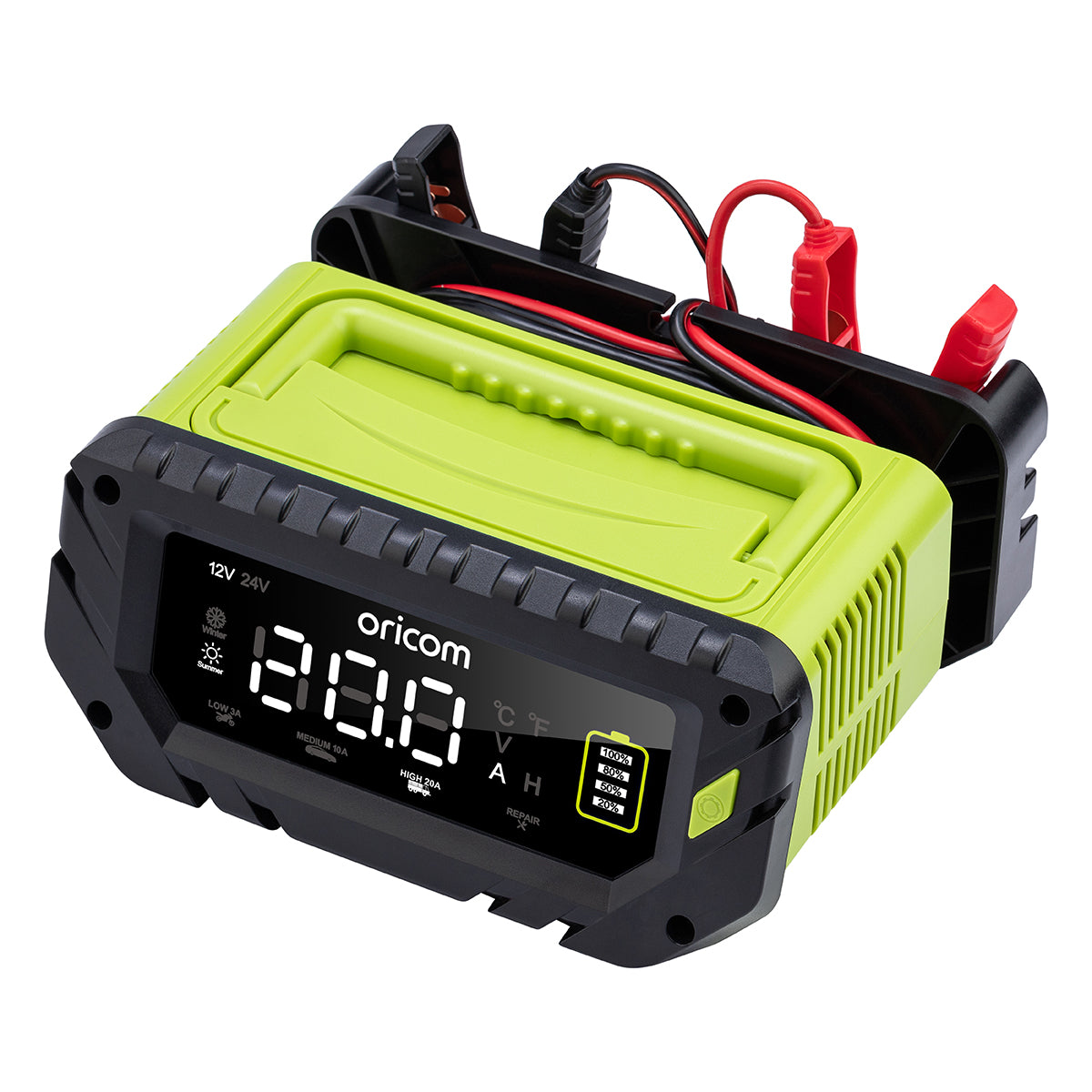

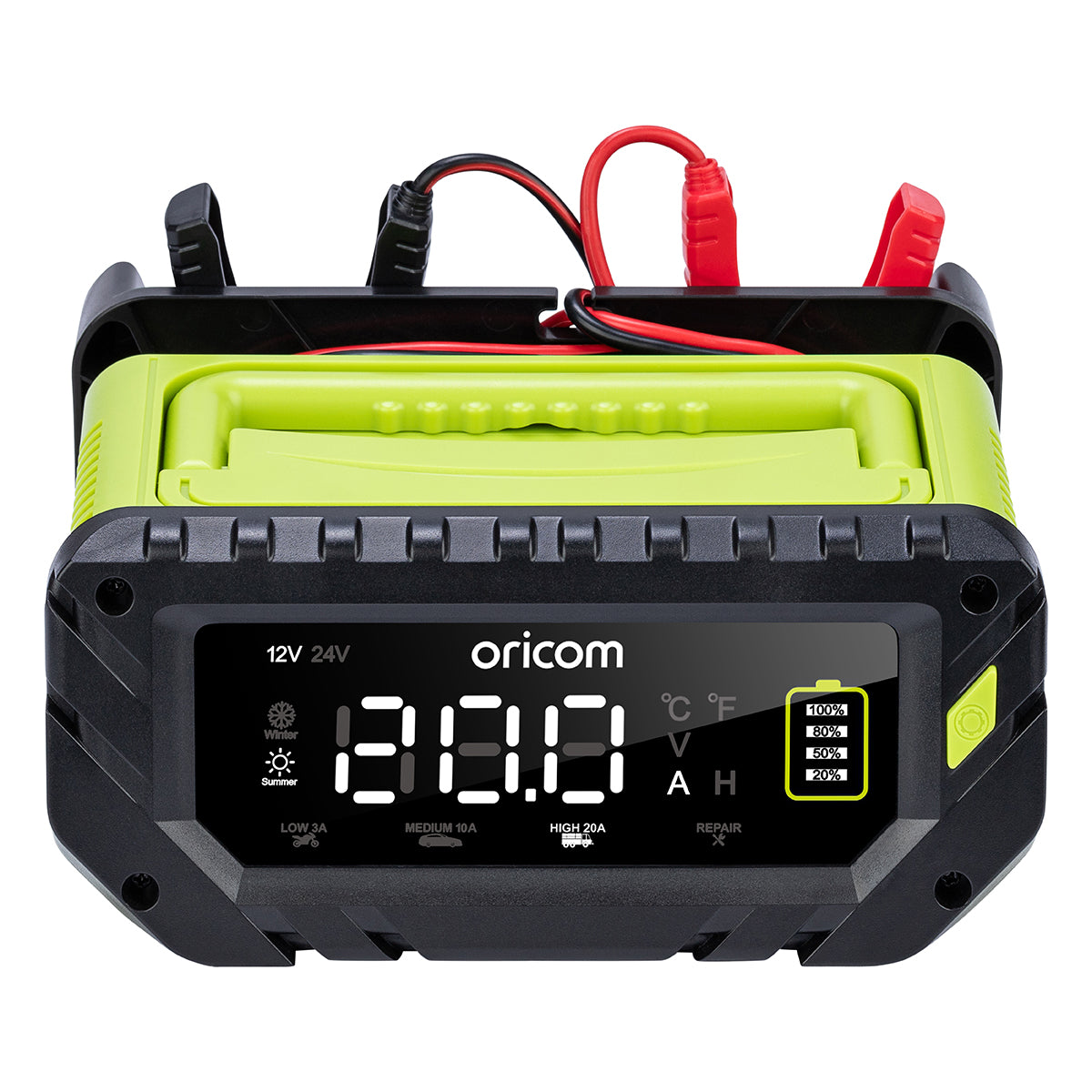

A battery charger is a device used to recharge a car’s battery, ensuring it’s fully charged and ready for use. Oricom offers a variety of chargers designed to safely, effectively, and reliably charge your car, 4WD, caravan, or other vehicles. Featuring advanced technology like automatic shut-off and multi-stage charging, our chargers help maintain your battery’s health and performance.

A 12V battery charger is designed to recharge 12-volt batteries commonly found in cars, caravans, 4WDs, and other small to medium-sized equipment. Oricom’s 12V chargers offer a quick, easy way to keep your vehicle’s battery healthy, whether you’re charging it at home or on the move. With features like reverse polarity protection and automatic shut-off, you can rest assured your battery will be charged safely, helping to prolong its life.

Automatic battery chargers detect the charge level of your battery and adjust the charging process accordingly. Once connected, the charger starts charging automatically. Oricom’s multi-stage charging technology ensures your battery is charged efficiently and securely. With features like automatic shut-off or maintenance mode when the battery is full, charging is quick, simple, and worry-free, keeping your battery in top condition with minimal effort.

Multi-stage chargers provide several key advantages. These chargers adjust the charging rate at different stages: a bulk charge to quickly restore power, an absorption stage to safely top up the battery, and a maintenance stage to keep the battery at full charge without risking damage. This process ensures your battery is charged safely, efficiently, and with minimal wear, extending its lifespan. Oricom’s multi-stage chargers are designed for long-term use, offering your battery the best possible care.

Yes, Oricom battery chargers are perfect for use with 4WDs, caravans, and other recreational vehicles. Whether you’re charging during extended storage or recharging after a long trip, our chargers are built to meet the needs of both small and large vehicles. Features like automatic shut-off and reverse polarity protection ensure your battery is charged safely and effectively, no matter what vehicle you’re using.

Oricom’s automatic battery chargers feature indicators or automatic shut-off functions to let you know when your battery is fully charged. Most models will automatically turn off or switch to maintenance mode when charging is complete, removing the guesswork. Some chargers even have a digital display to show the current charge level, making it easy to monitor your battery and ensure it’s fully charged before your next journey.
