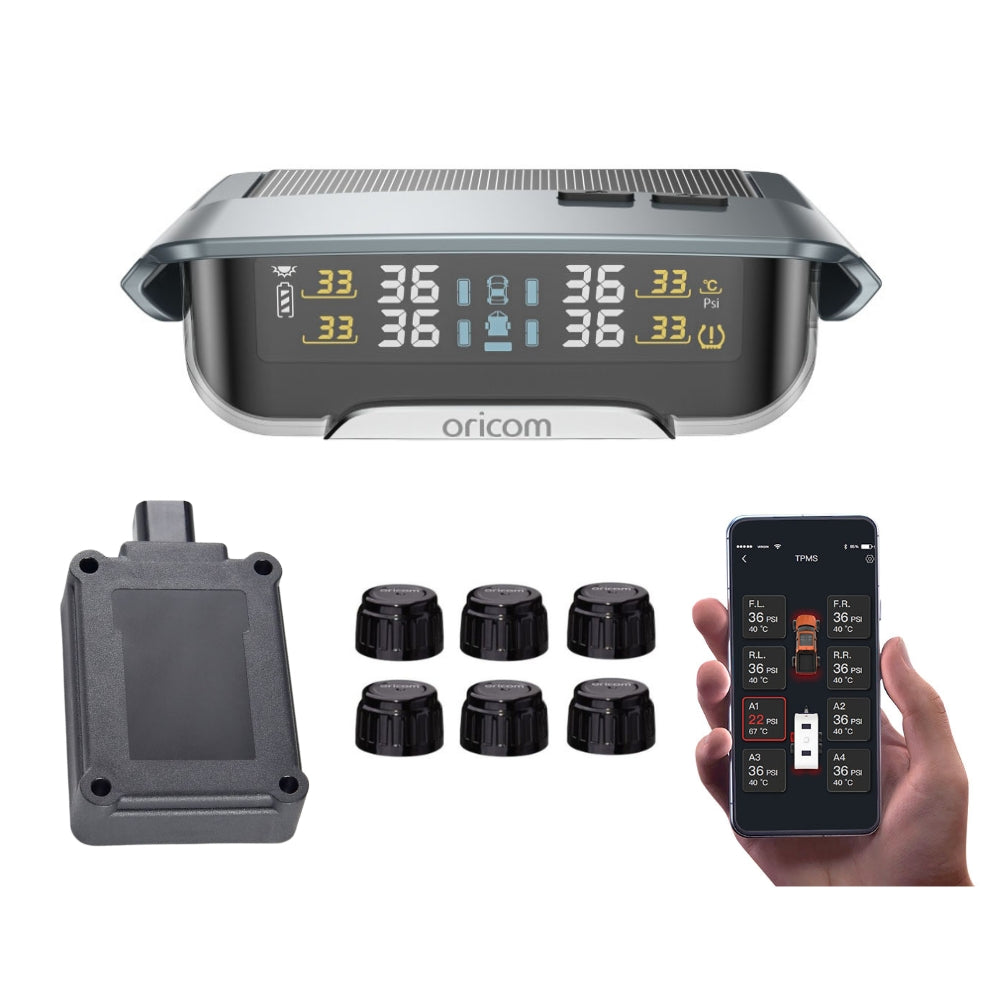

TPMS10-6ER TPMS Incl. 6 External Sensors with APP Control Settings + Repeater Value Pack
.
Product Details
TPMS10-6E Features:
• Compatible with up to 10 tyre sensors
• Easy setup with the free app
• Switch between Offroad and Normal modes to
save tyre pressure settings
• Compact solar powered display unit
• Long lasting display unit battery life
• Wireless transmission between sensor
and display unit
• Adjustable threshold value
• Auto brightness on display
• Monitors pressure and temperature
• Visual and audio alarm
• Optional micro USB input
• Intelligent sleeping mode for power saving
• High/ low pressure warning
• Sensor failure warning
• 12 Month warranty
Technical Specifications:
Sensor:
Operating frequency: 433.92MHz ± 0.05MHz
Operating voltage: 2.3 ~ 3.3V
Operating current: ≤1 2mA
Static current: ≤0.5uA
Operating temperature: -20˚C ~ +80˚C
Storage temperature: -40˚C ~ +80˚C
Battery model: CR1632
Display:
Operating frequency: 433.92MHz ±0.05MHz, 2.4GHz BLE
Operating current: ≤32mA
Static current: ≤45μA
Operating voltage: 2.6 ~ 3.6V
Operating temperature: -20˚C ~ +70˚C
Storage temperature: -40˚C ~ +95˚C
Built-in battery capacity: 500mAh
Charging temperature: -10˚C ~ 65˚C
Solar charging current: ≥15mA (at 5500LX 25˚C)
USB Charging current: ≤70mA
WARNING - KEEP BUTTON BATTERIES OUT OF REACH OF CHILDREN
- Button/coin cell batteries are hazardous and must be kept out of reach of children at all times, whether the battery is new or used.
- If it is suspected a button/coin cell battery has been swallowed or placed inside any part of the body, seek medical attention immediately or contact the Australian Poisons Information Centre on 131126 for 24/7 fast, expert advice. These batteries can cause severe or fatal injuries in 2 hours or less if swallowed or placed inside any part of the body.
- Regularly examine devices and make sure the battery compartment is correctly secured, e.g. that the screw or other mechanical fastener is tightened. Do not use if compartment is not secure.
- Dispose of used button batteries immediately and safely out of the reach of children. A battery can still be dangerous even when it can no longer operate the device.
- Tell others about the risk associated with button batteries and how to keep their children safe.
Files
User guides
Product registration
Additional Information
- Frequently Asked Questions
- Videos Guides
How quickly does it update and do I need to be moving?
The Oricom TPMS10 updates your tyre information automatically, but you’ll need to be moving for the sensors to wake up. As soon as you’re driving at around twenty-five kilometres an hour or more, the display and app will begin showing pressure and temperature data. Once active, the system updates regularly, so you’ll see changes quickly if a tyre loses air or starts to heat up. When you stop driving, the display goes into a power-saving mode, and the sensors pause to save their batteries—ready to wake up again on your next trip.
How do I manage trailers and spares?
With the Oricom TPMS10 you can easily manage trailers and spare tyres through the display or the Oricom app. If you’re towing, just enable the trailer sensors so you can see their data alongside your vehicle tyres. When you unhitch, you can quickly disable or hide that trailer profile, so it doesn’t clutter your screen. The same goes for spares—enable them when you want to keep an eye on their pressure, or hide them if you’d rather just monitor your main tyres. It’s designed to be flexible, so you only see the information that matters for the trip you’re on.
How do I set units and alerts?
Customising the Oricom TPMS10 to suit your setup is simple. Start by choosing your preferred units. On the display or in the Oricom TPMS app, you can switch between PSI or Bar for pressure, and Celsius or Fahrenheit for temperature. Using the App, to change the unit of measurement, once you have connected the sensors and logged in, navigate to UNIT in the menu, and change between BAR/PSI and Celsius and Farrenheit. Next, set your alerts. You’ll be able to adjust the high and low pressure limits, plus set a maximum temperature. These alerts make sure you get a warning if a tyre drops too low, climbs too high, or overheats. On the App, in the settings, you can adjust the parameters inside of Pressure Value and Temperature Value settings. These settings can be isolated to Tow Vehicle, Trailer or Spares. Once saved, the system constantly monitors each tyre and will send an alert straight to both the display and the app—so you’re always in control, whether you’re in the cab or checking your phone when the vehicle is off.
