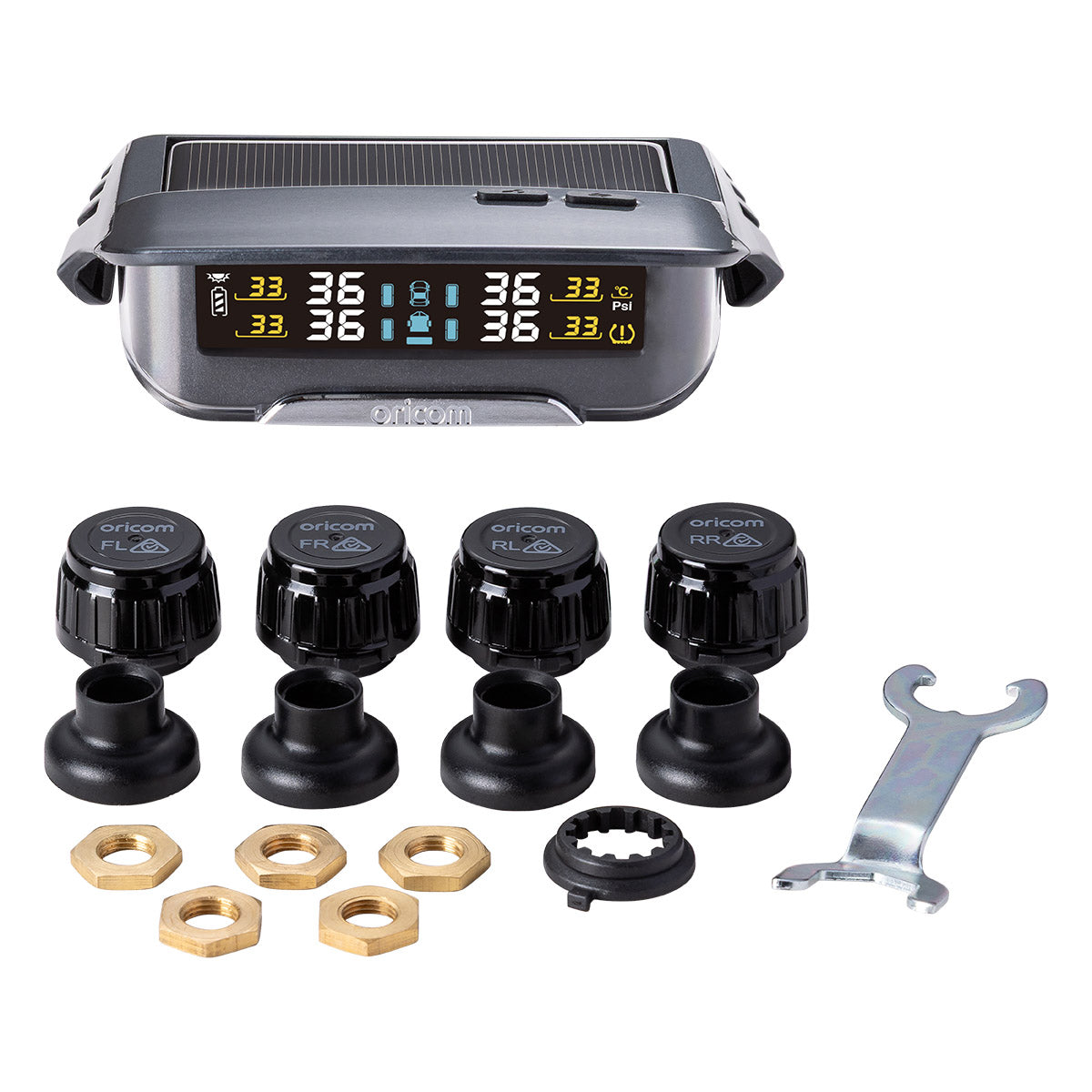

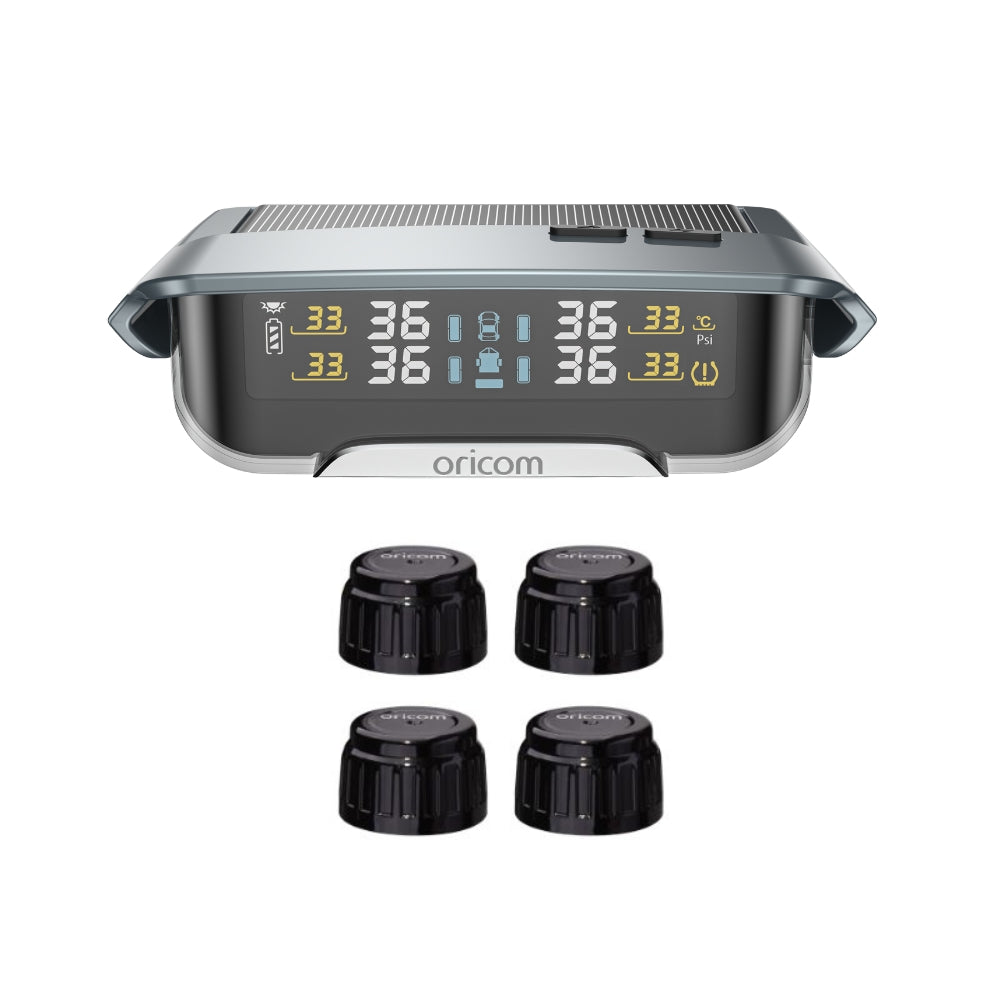

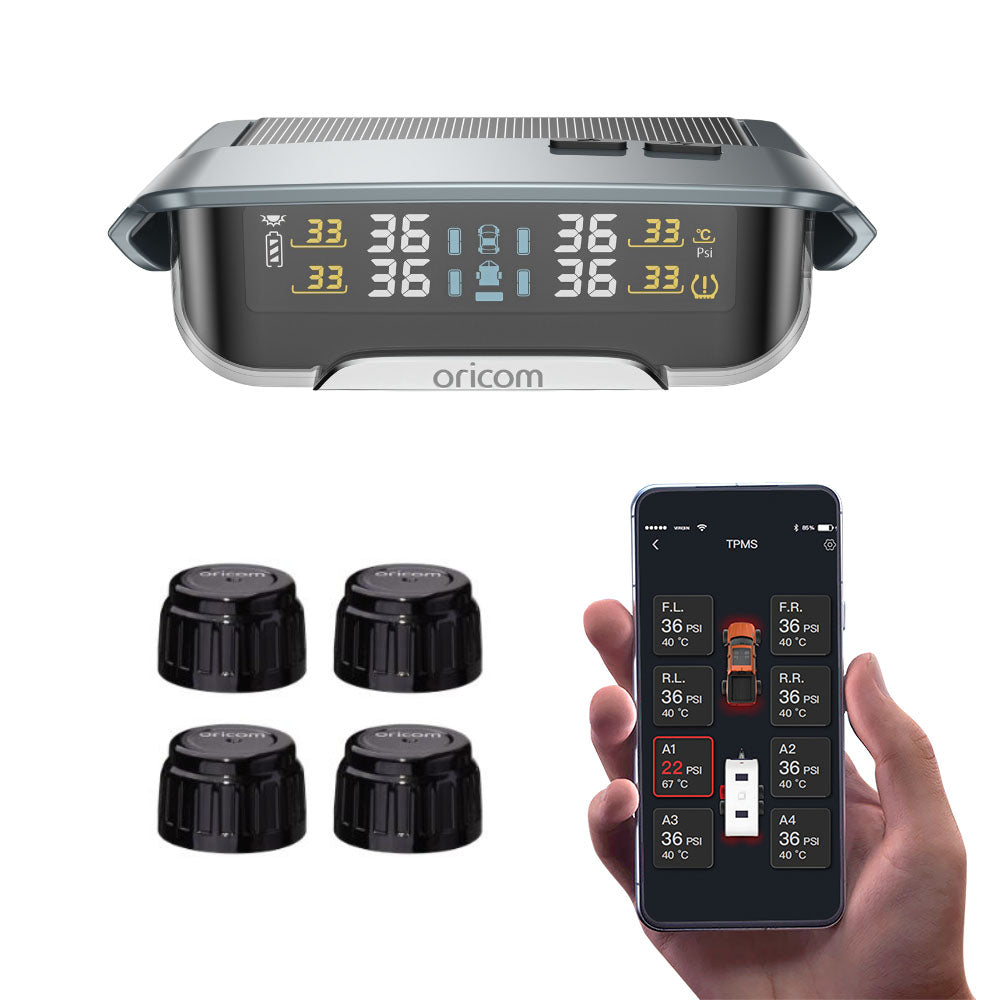

TPMS10-4E Tyre Pressure Monitoring System Incl. 4 External Sensors & APP Functionality

Key Features:

• Compatible with up to 10 tyre sensors
• Easy setup with the free app
• Switch between Offroad and Normal modes to
save tyre pressure settings

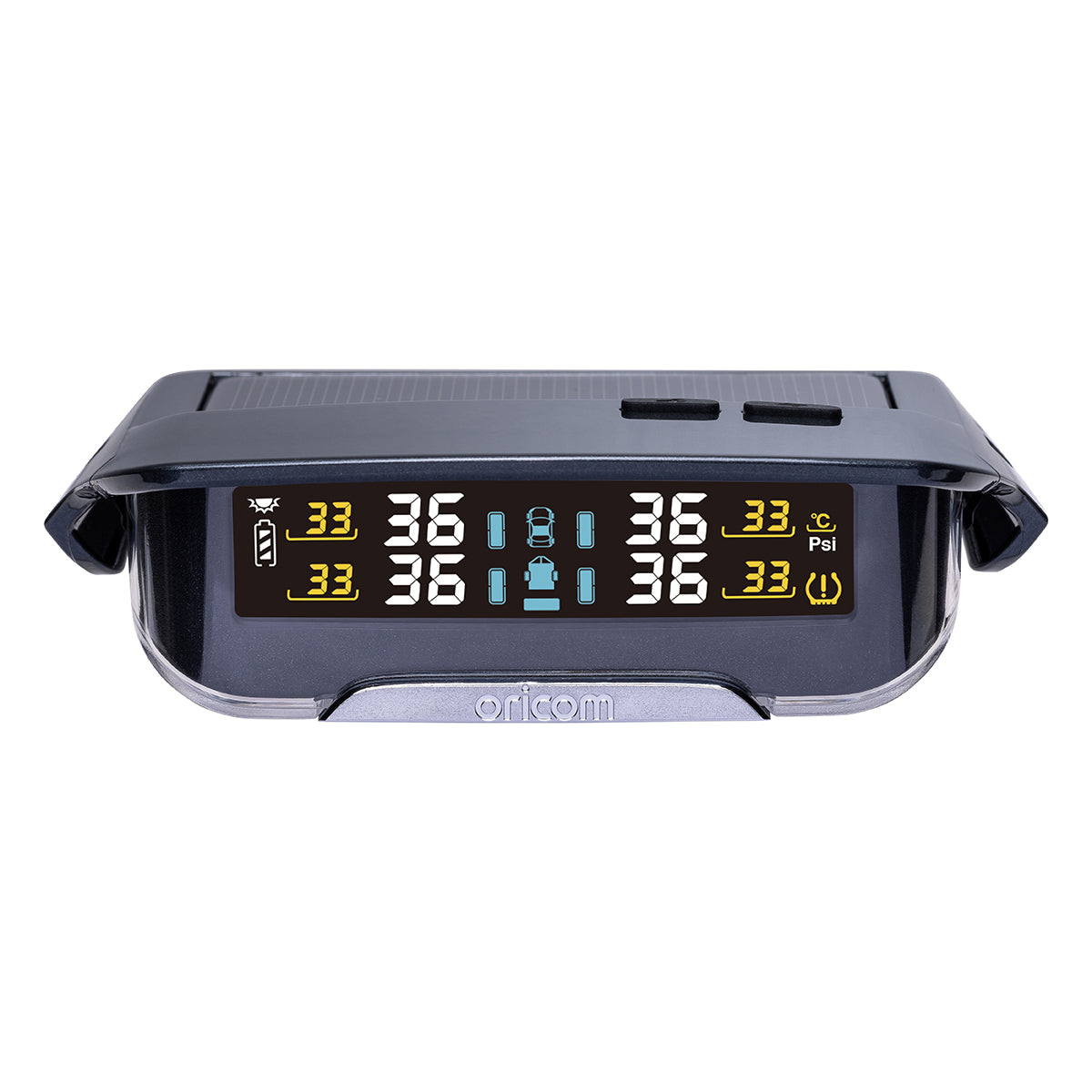

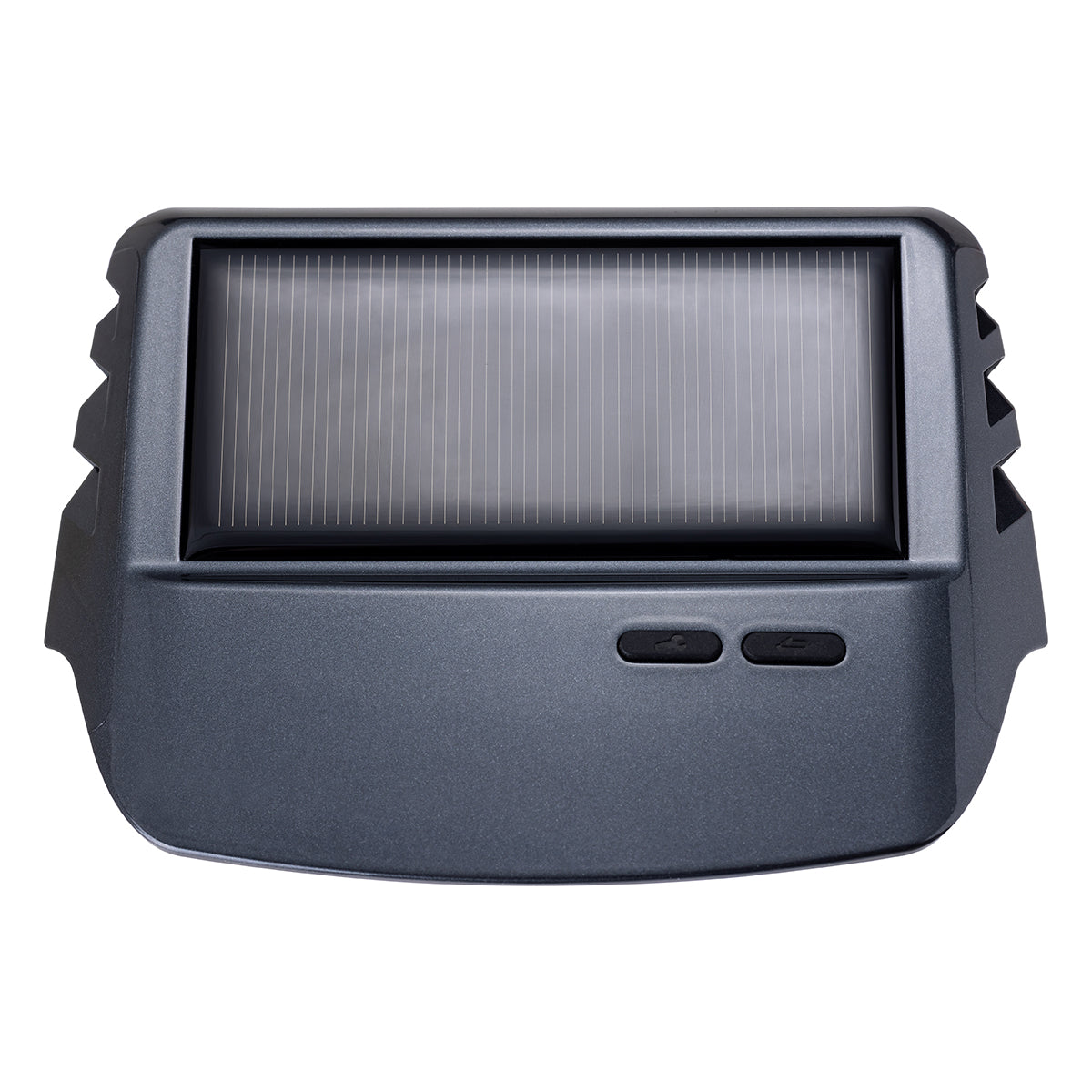

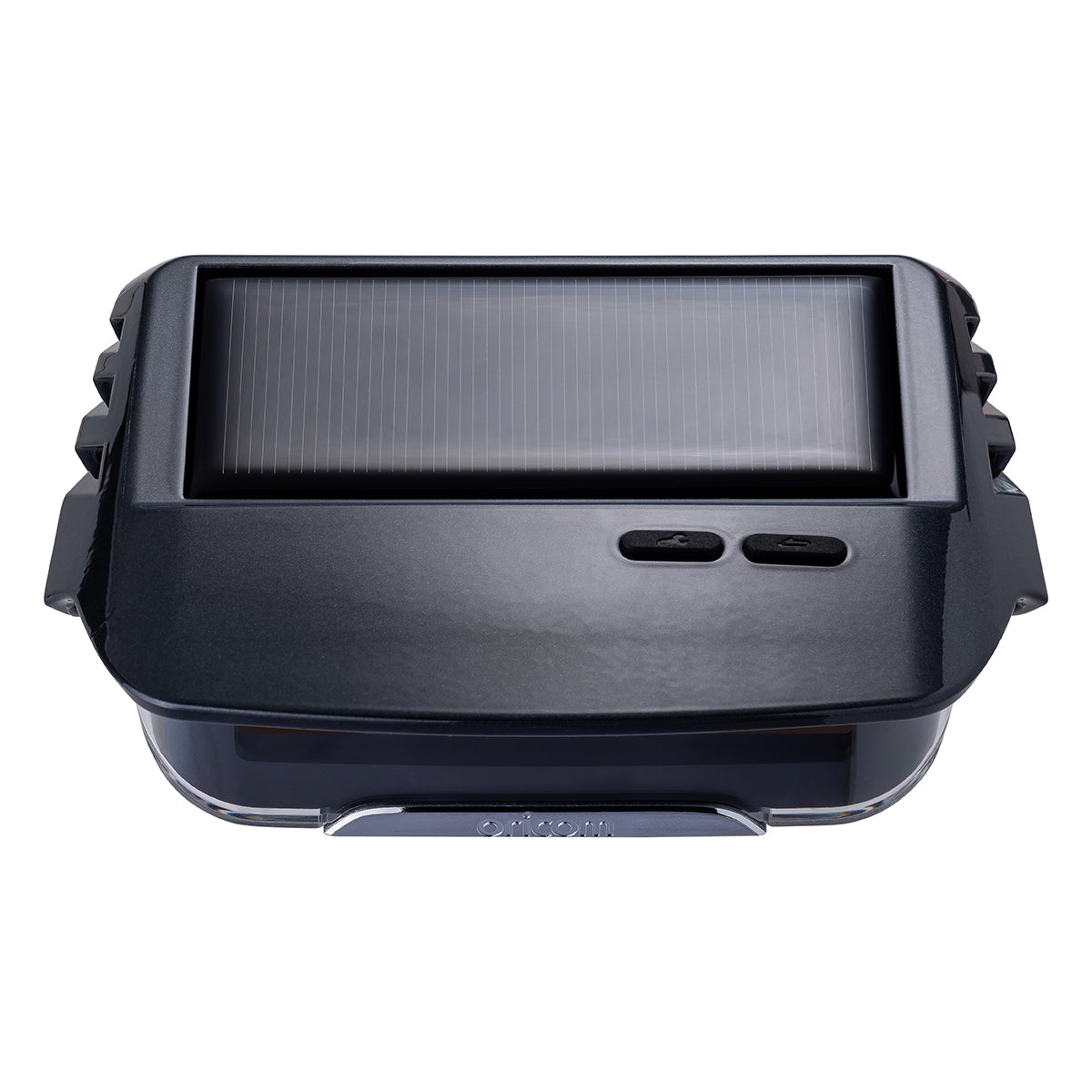

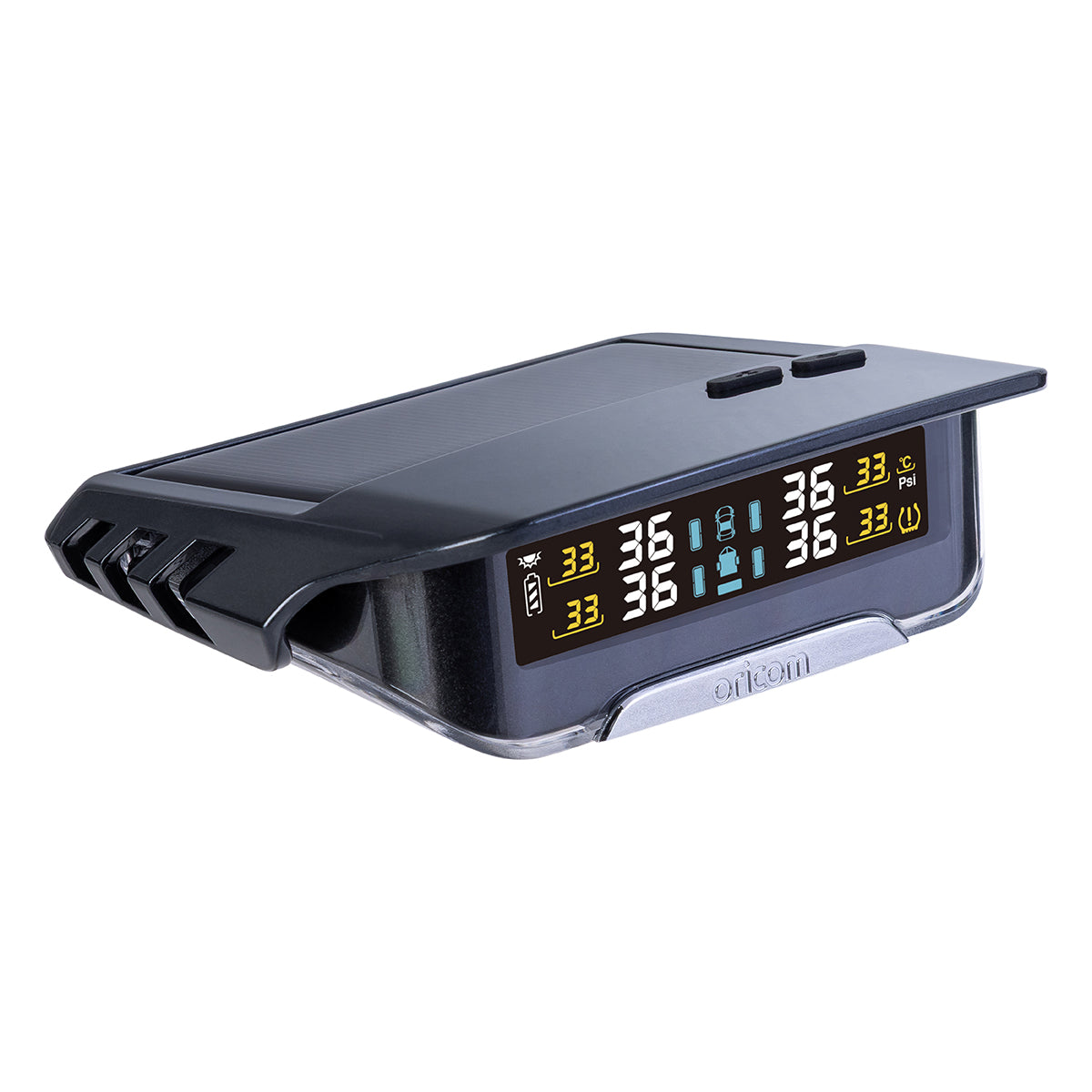

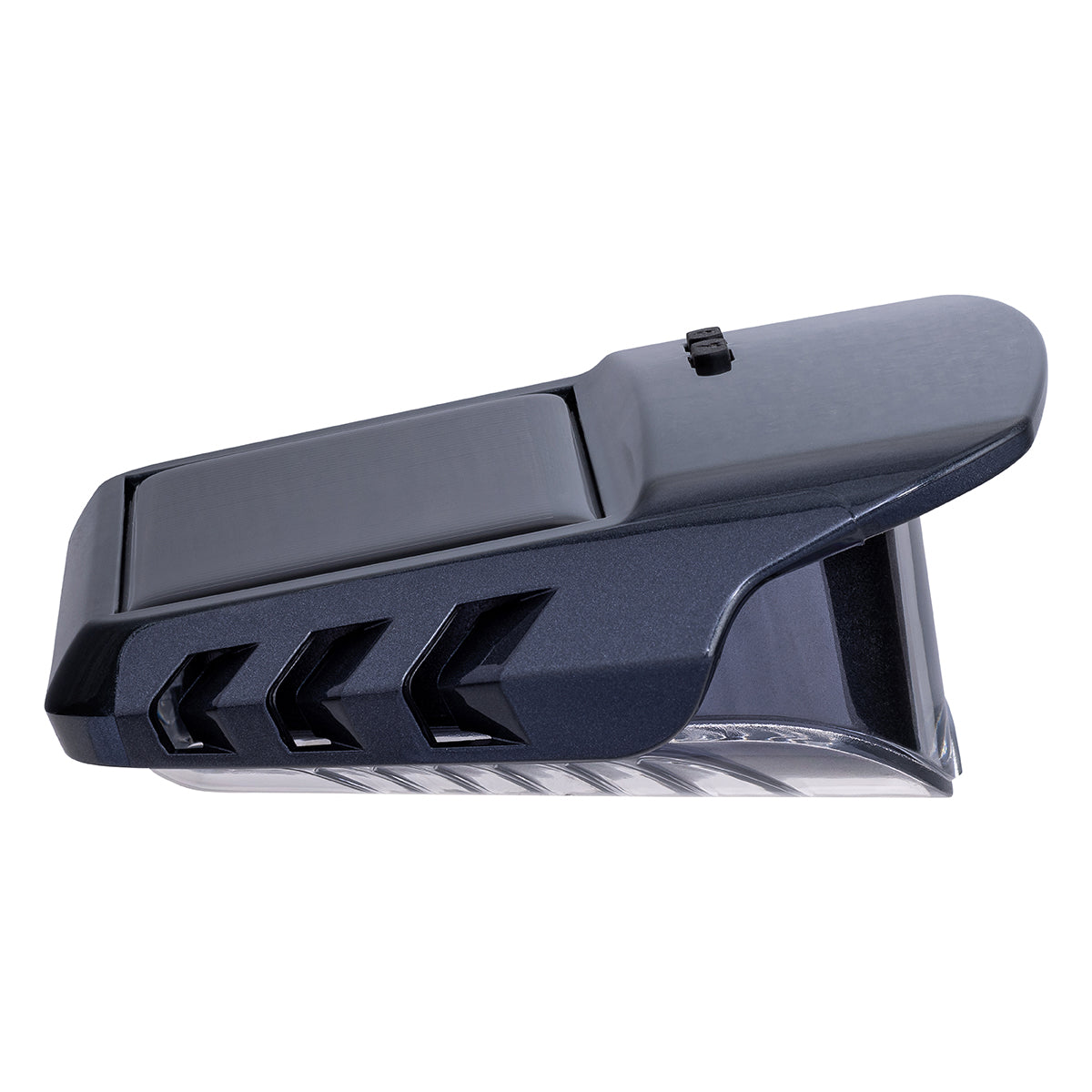

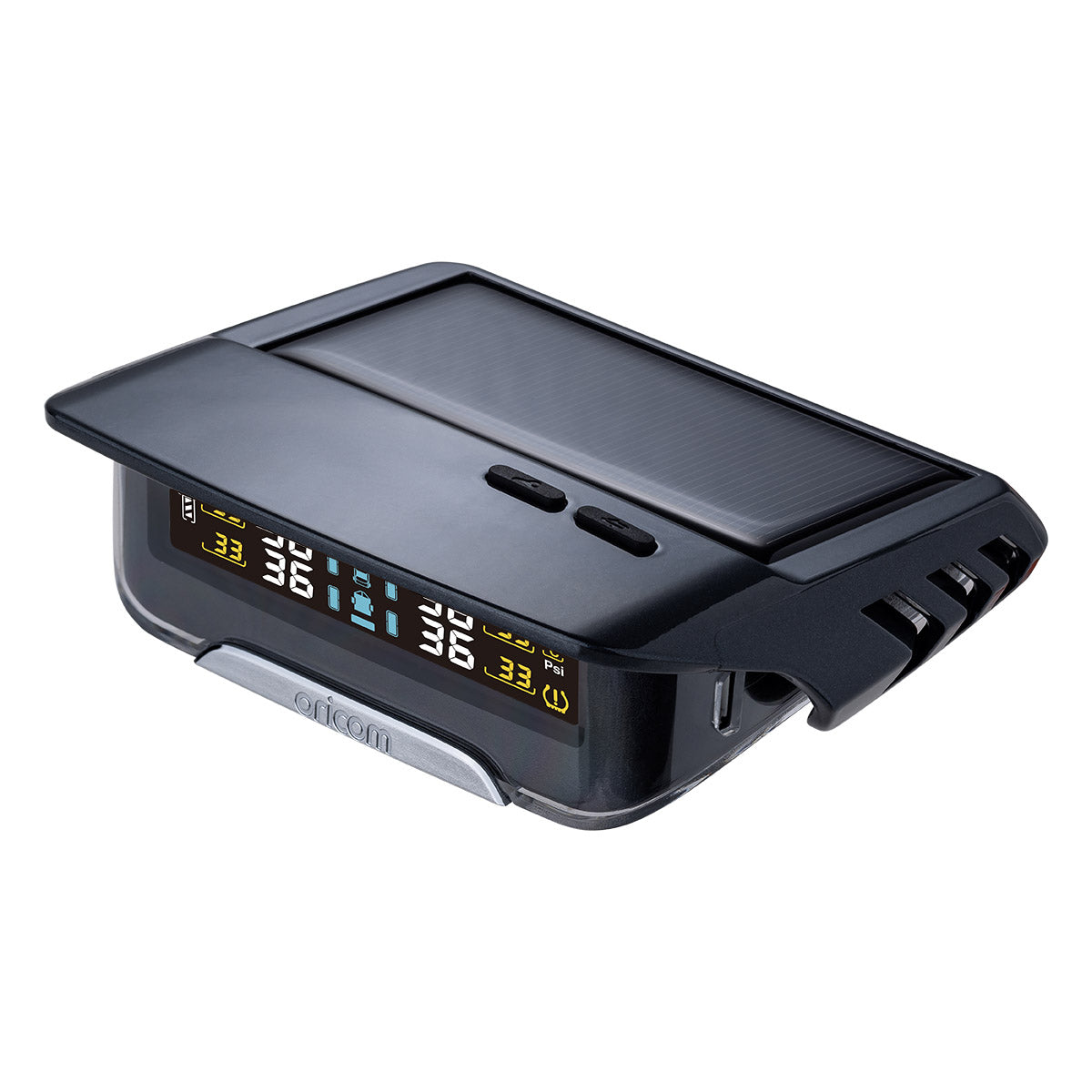

• Compact solar powered display unit
• Long lasting display unit battery life
• Wireless transmission between sensor
and display unit
• Adjustable threshold value
• Auto brightness on display
• Monitors pressure and temperature
• Visual and audio alarm

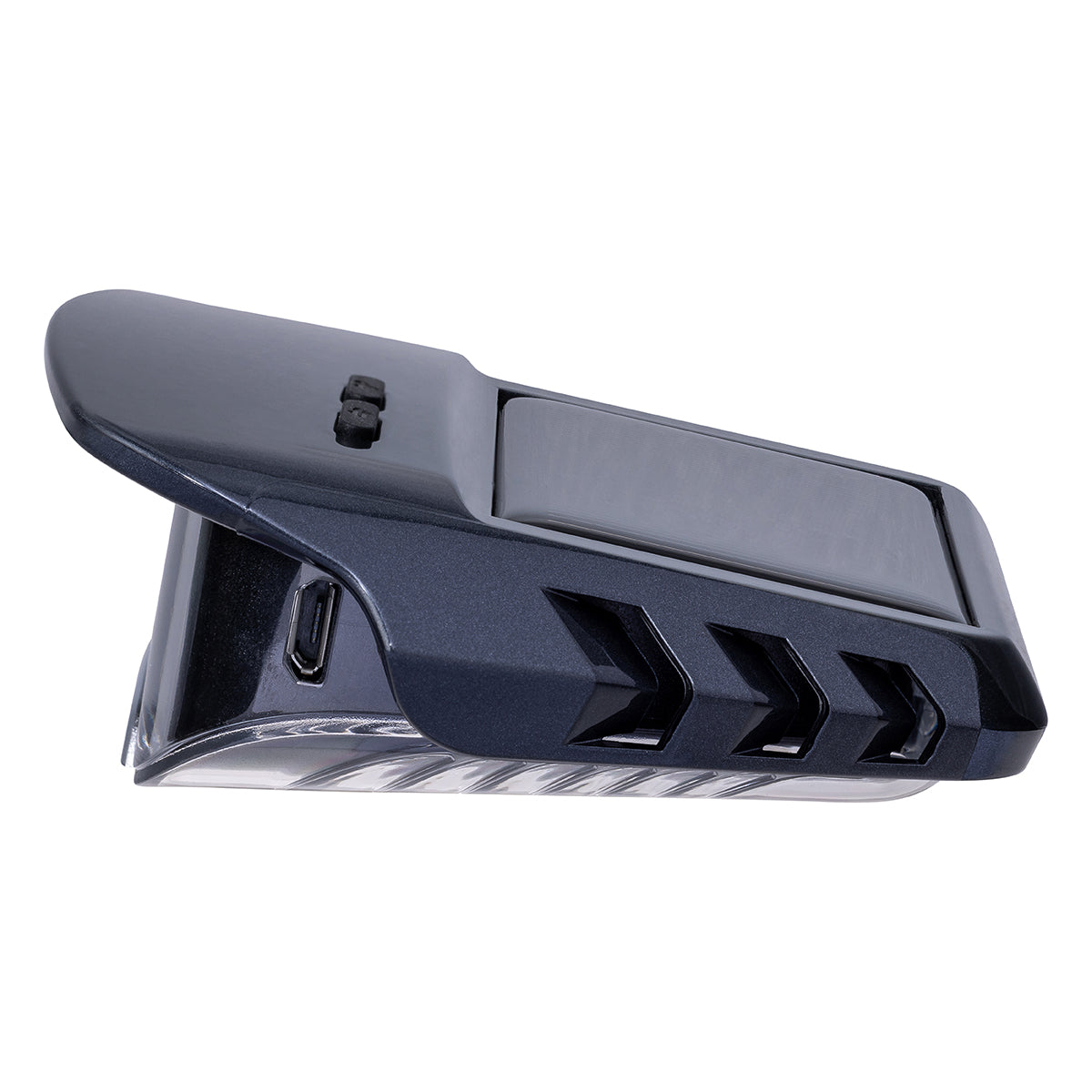

• Optional micro USB input
• Intelligent sleeping mode for power saving
• High/ low pressure warning
• Sensor failure warning
• 12 Month warranty

Technical Specifications:

Sensor:
Operating frequency: 433.92MHz ± 0.05MHz
Operating voltage: 2.3 ~ 3.3V
Operating current: ≤1 2mA
Static current: ≤0.5uA
Operating temperature: -20˚C ~ +80˚C
Storage temperature: -40˚C ~ +80˚C
Battery model: CR1632

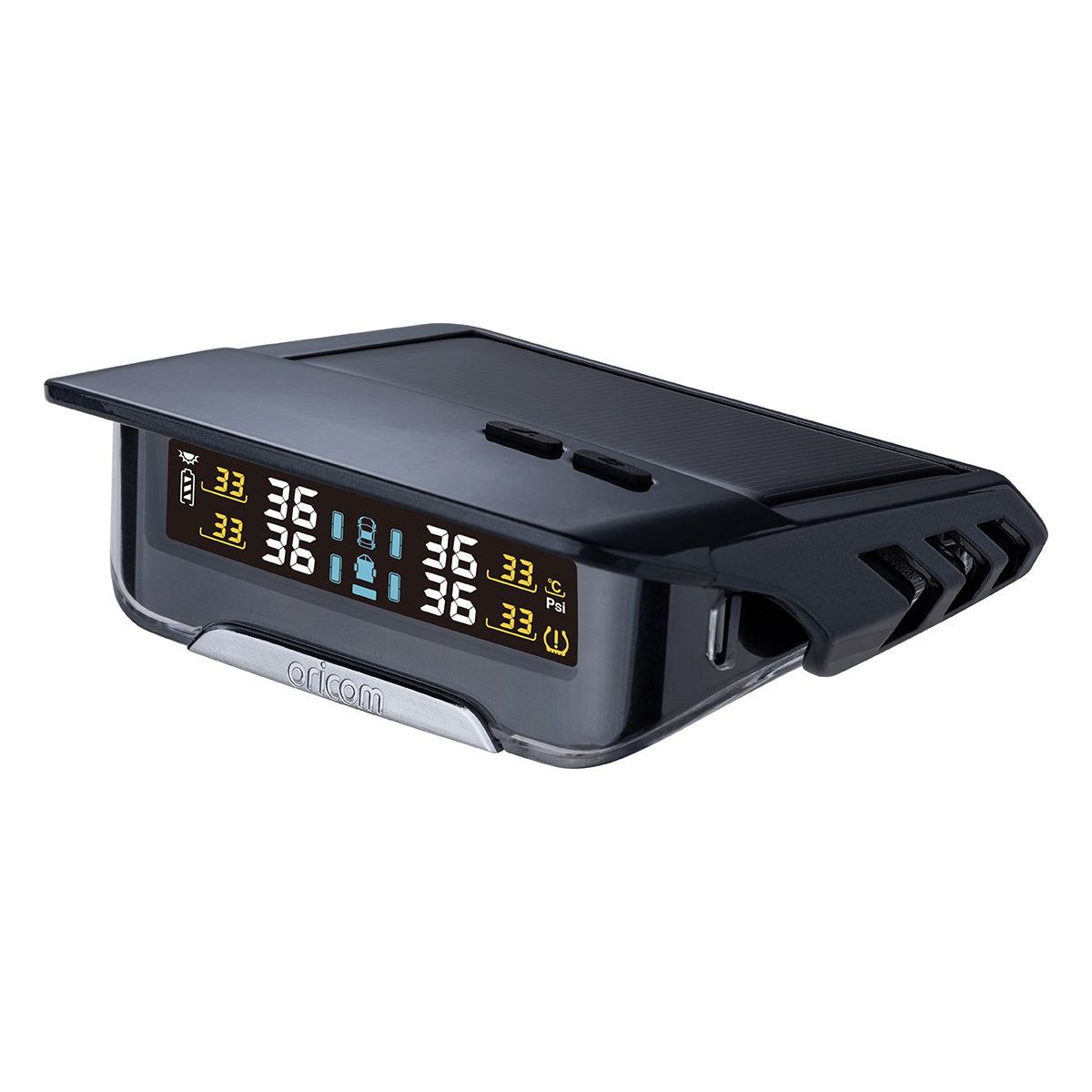

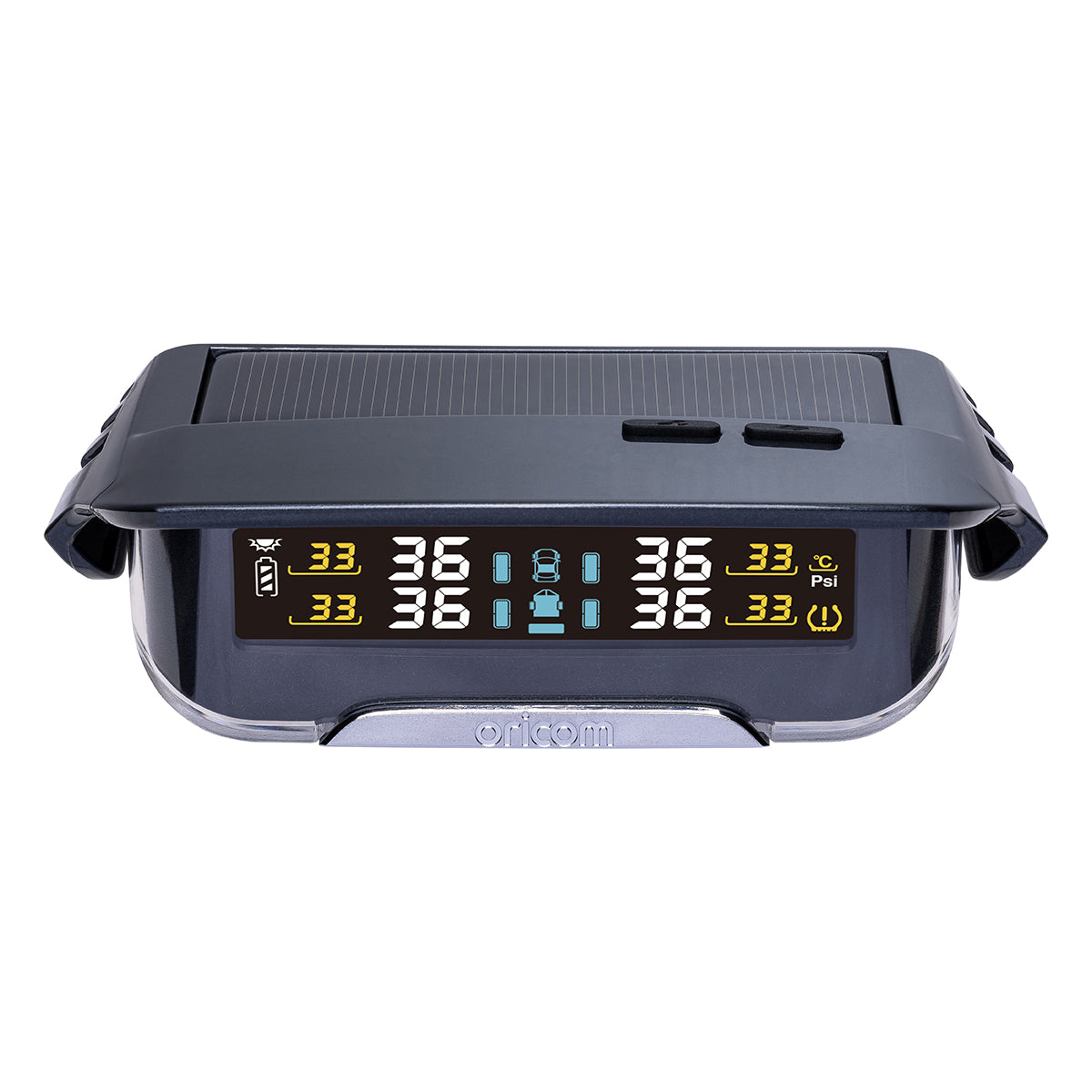

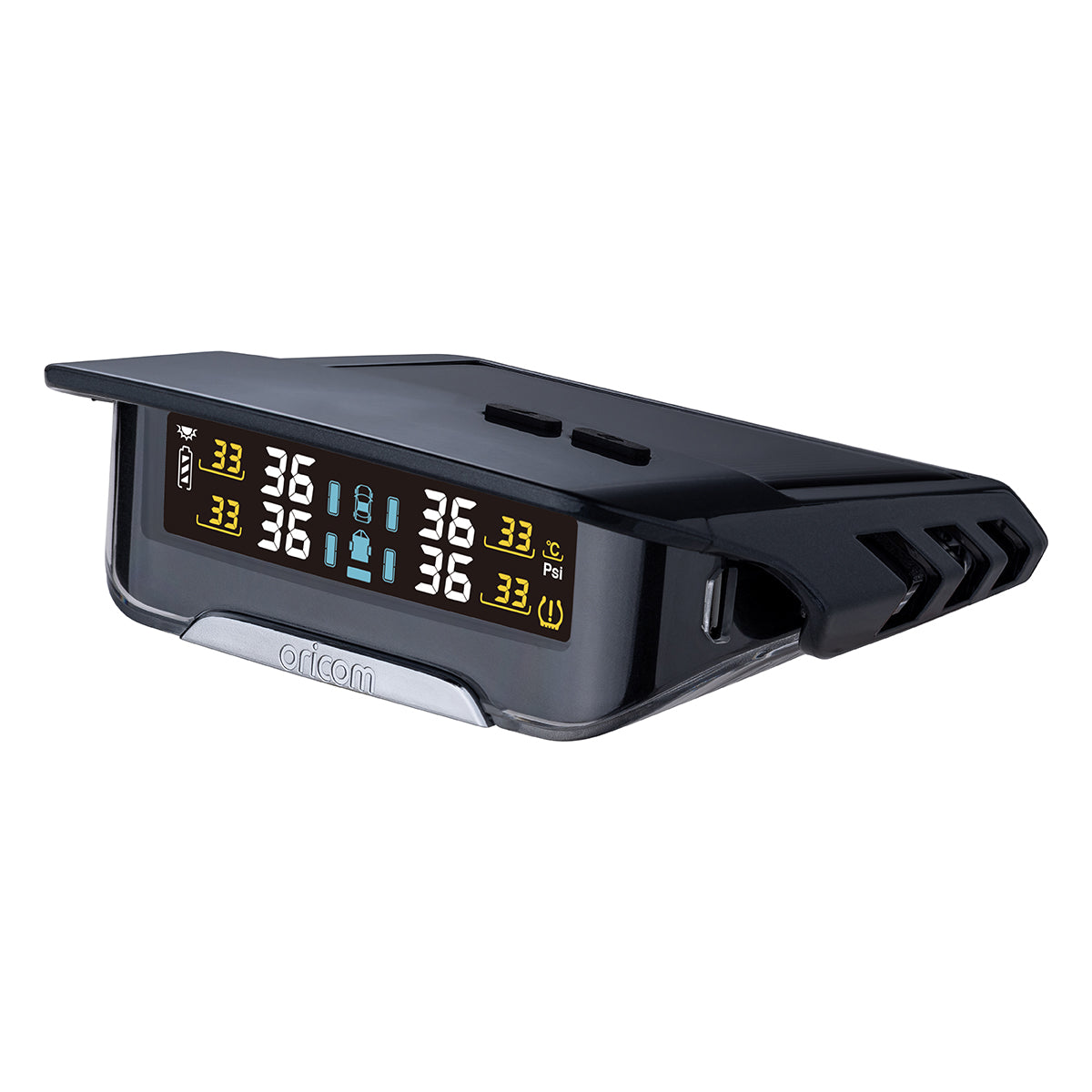

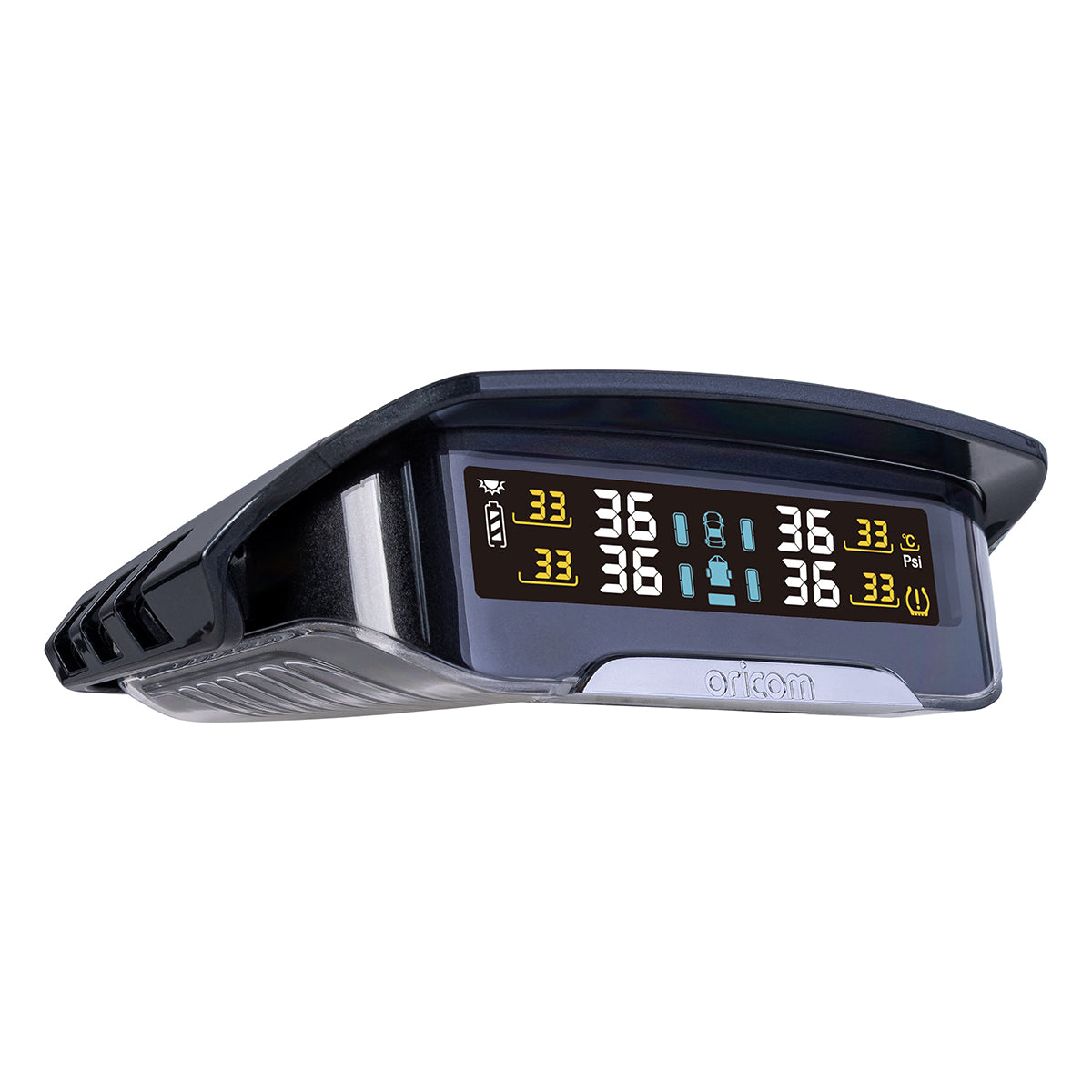

Display:
Operating frequency: 433.92MHz ±0.05MHz, 2.4GHz BLE
Operating current: ≤32mA
Static current: ≤45μA
Operating voltage: 2.6 ~ 3.6V
Operating temperature: -20˚C ~ +70˚C
Storage temperature: -40˚C ~ +95˚C
Built-in battery capacity: 500mAh
Charging temperature: -10˚C ~ 65˚C
Solar charging current: ≥15mA (at 5500LX 25˚C)
USB Charging current: ≤70mA
