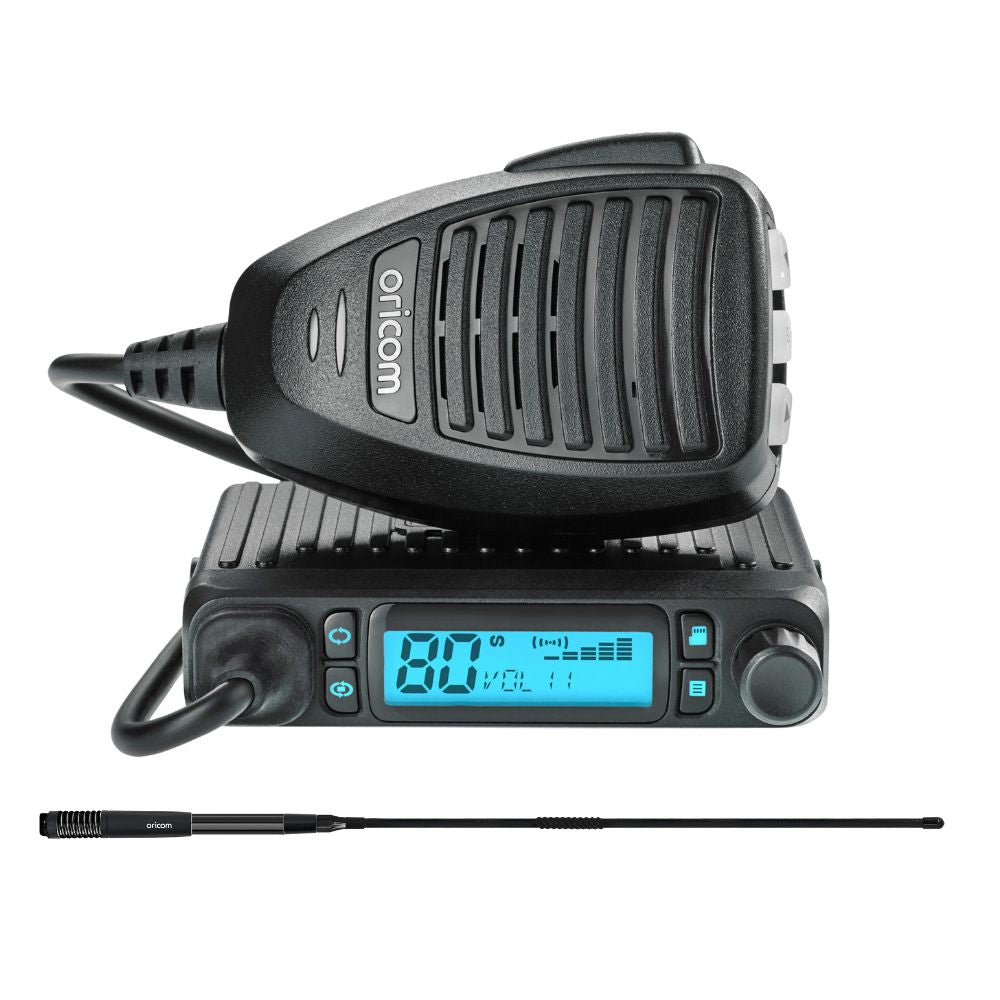

DTX4300BA Premium UHF CB Radio Value Pack
100% Aussie Owned
Free Delivery Over $99
Trusted Local Support
Premium UHF CB Performance
Stay Connected on the Road with Confidence
The DTX4300 delivers crystal-clear communication with reliable range and intuitive controls, perfect for both casual drivers and serious off-roaders. This value pack ensures you get everything you need to stay connected and safe, all at an unbeatable price.
Product Details
Key Features:
- Ultra compact micro size

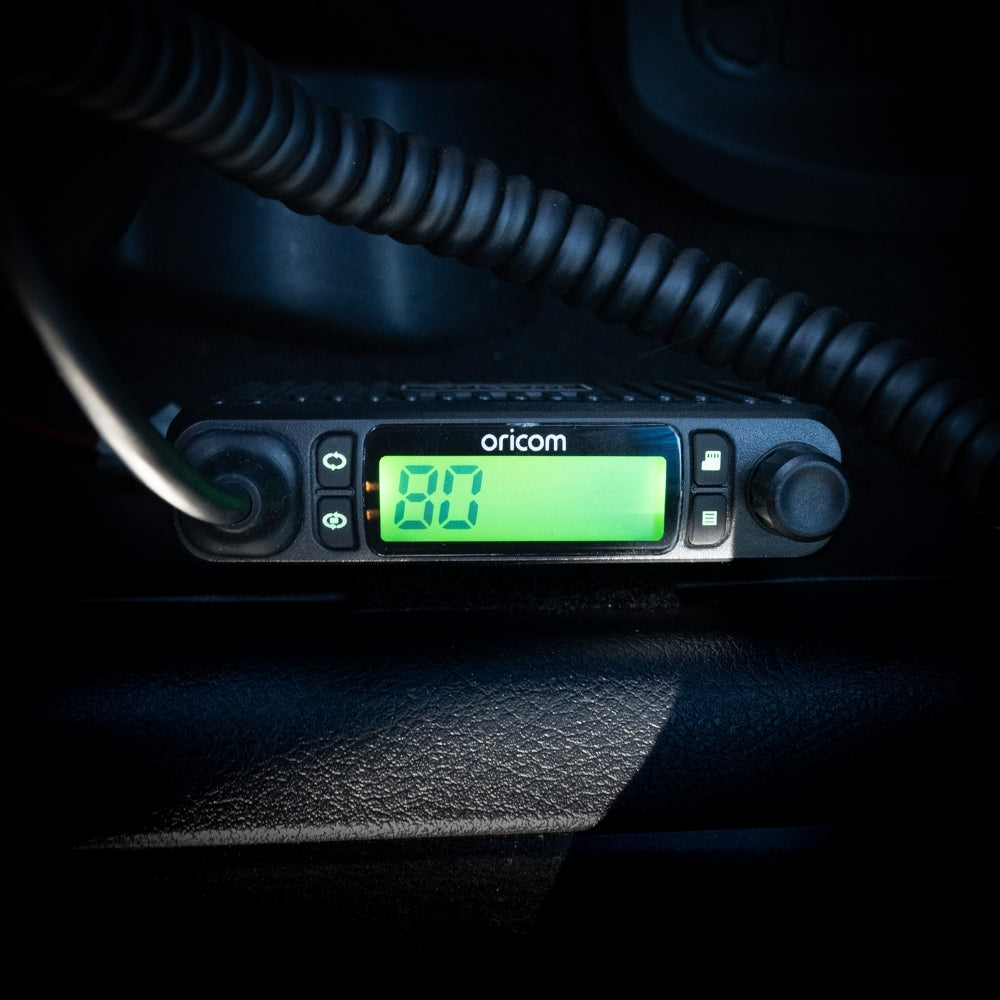

- 96 Colour LCD backlit display
- Flip LCD function
- Over voltage alert function

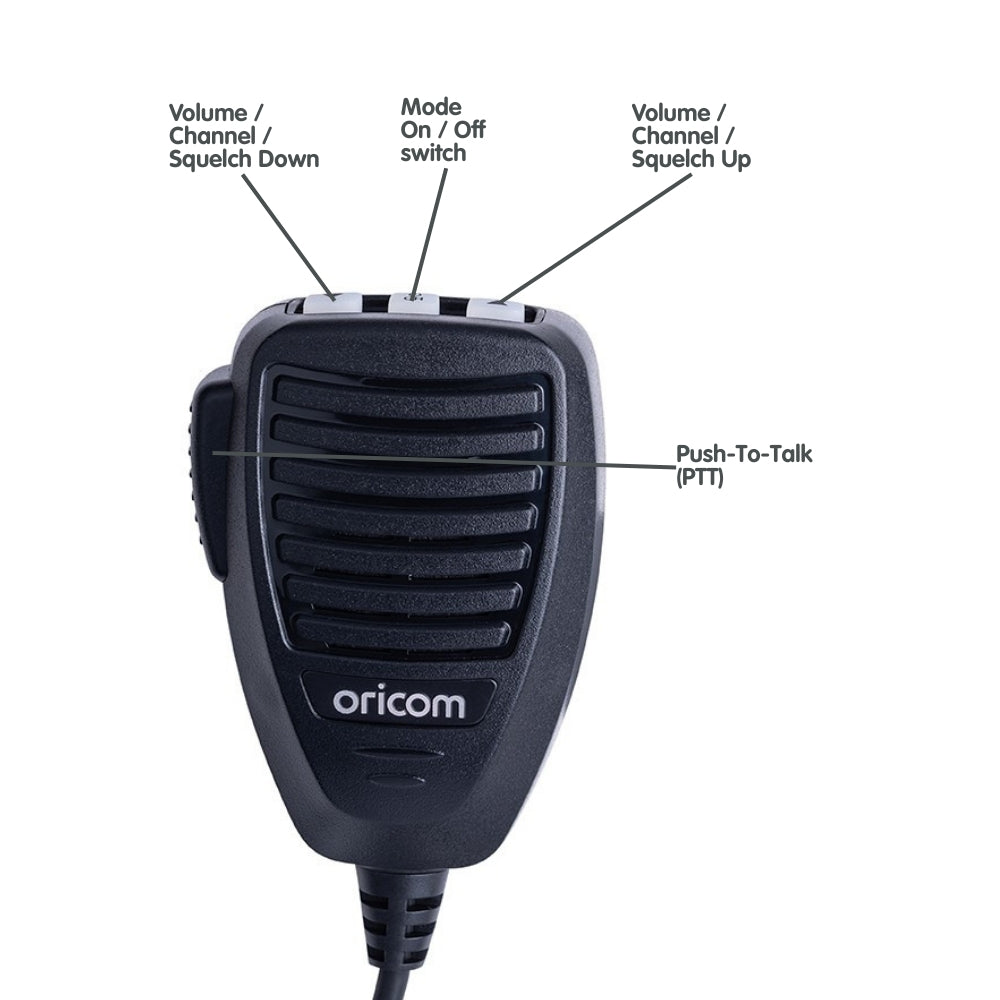

- Heavy duty microphone
- 3 memory groups
- Smart fast scanning (priority/
- group memory/ group tone scan)
- Back light brightness (4 pre-set levels plus auto)

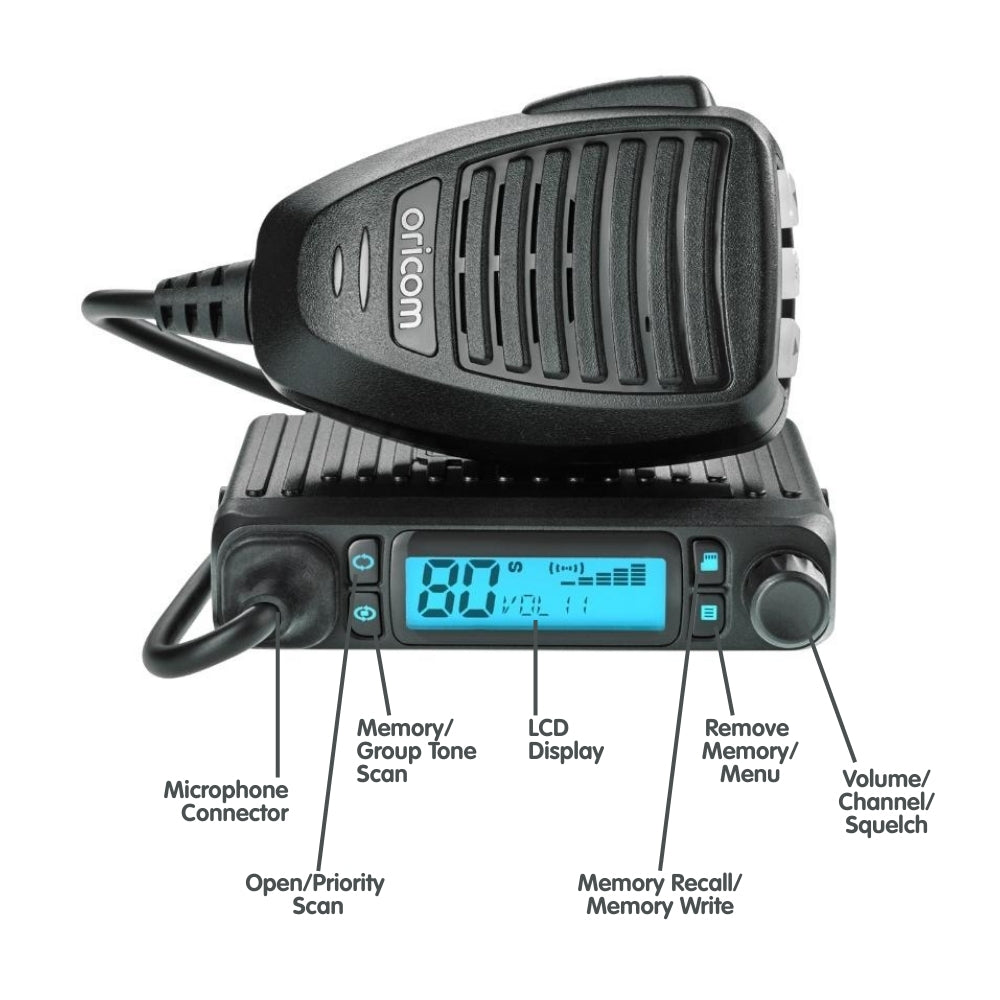

- Rotary volume/channel and squelch control
- Duplex
- 38 CTCSS & DCS codes
- Diecast metal chassis
- Auto power off (off/1h/2h/4h)
- 3.5mm external jack (for optional external speaker)
- Designed and engineered in Korea
- Transceiver Dimensions (22.5mm x 100mm x 76mm)
Antenna Key Features:
- 6.5dBi Black Antenna
- High-gain low SWR antenna gives the best “all-round” transmit and receive performance
- Elevated feed, counter balanced spring and solid black fiberglass whip
- Coaxial Cable length: 4.5m
- Antenna Length: 830mm
Files
User guides
Accessories/Spare parts
Product registration

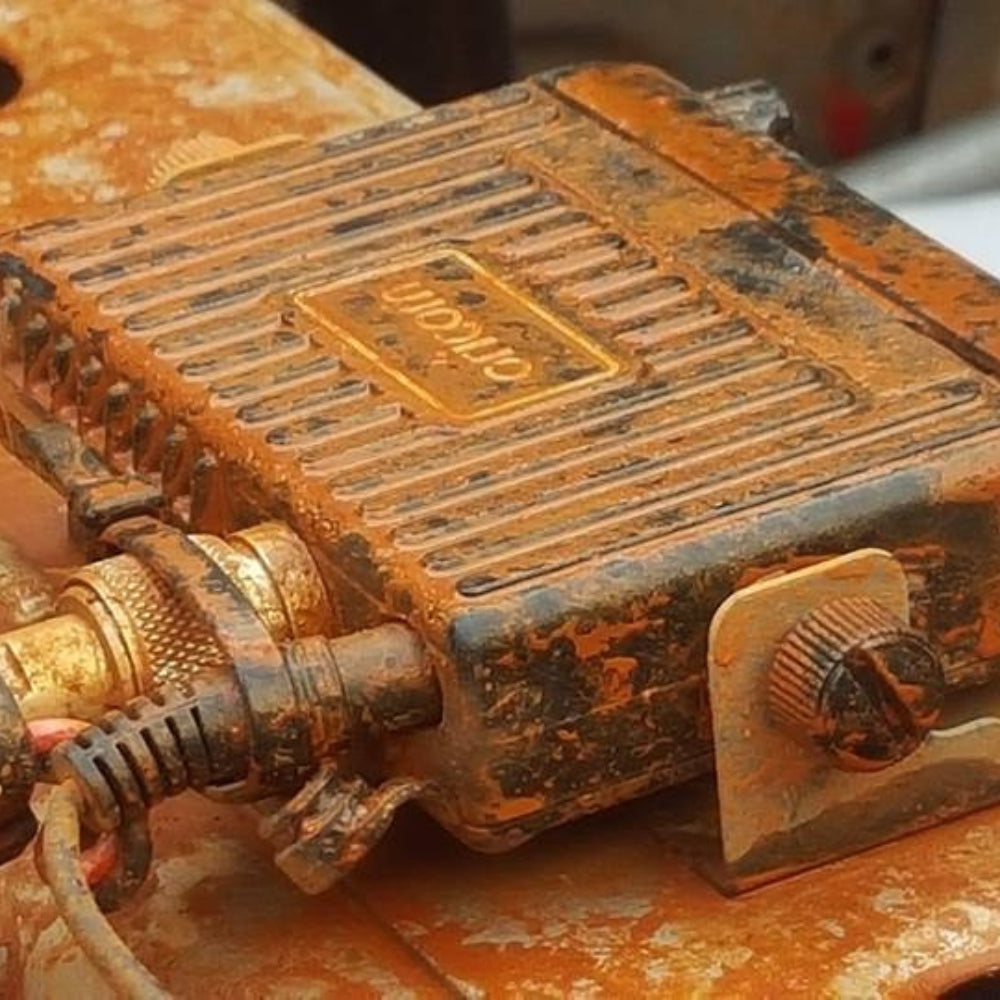

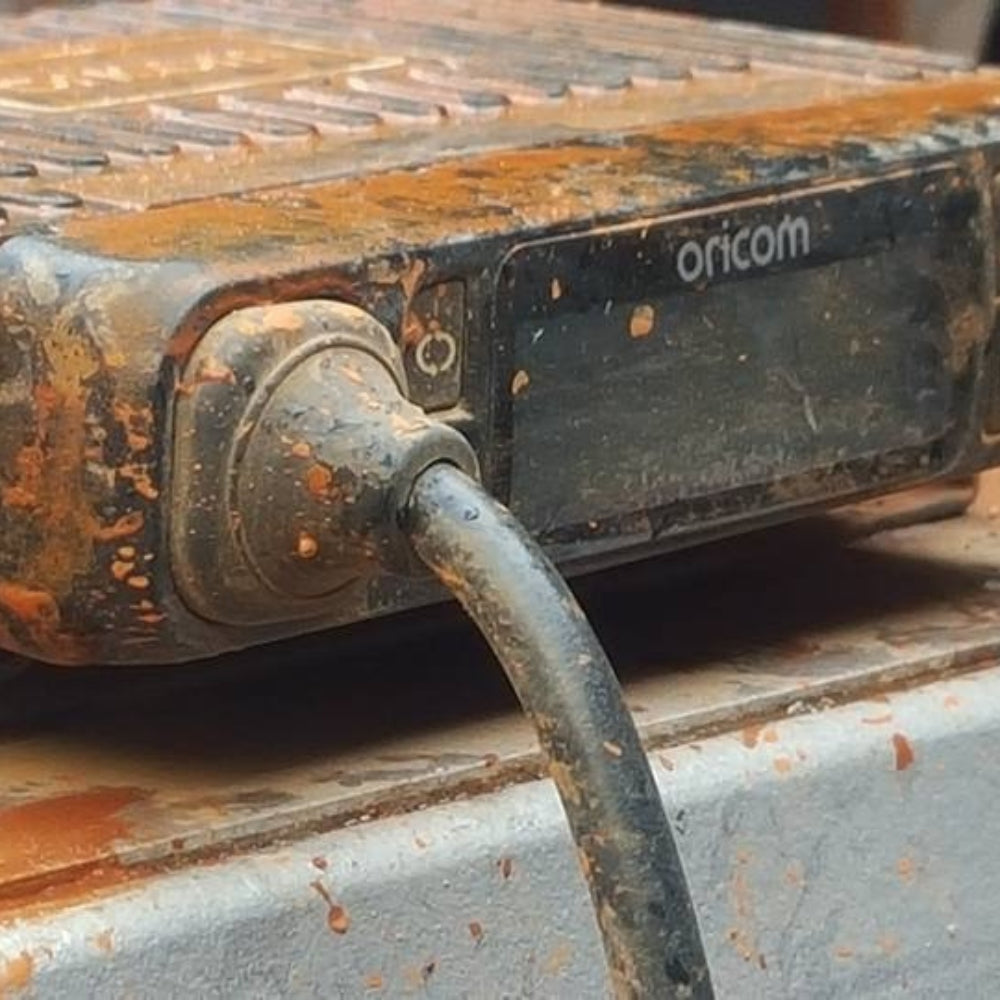

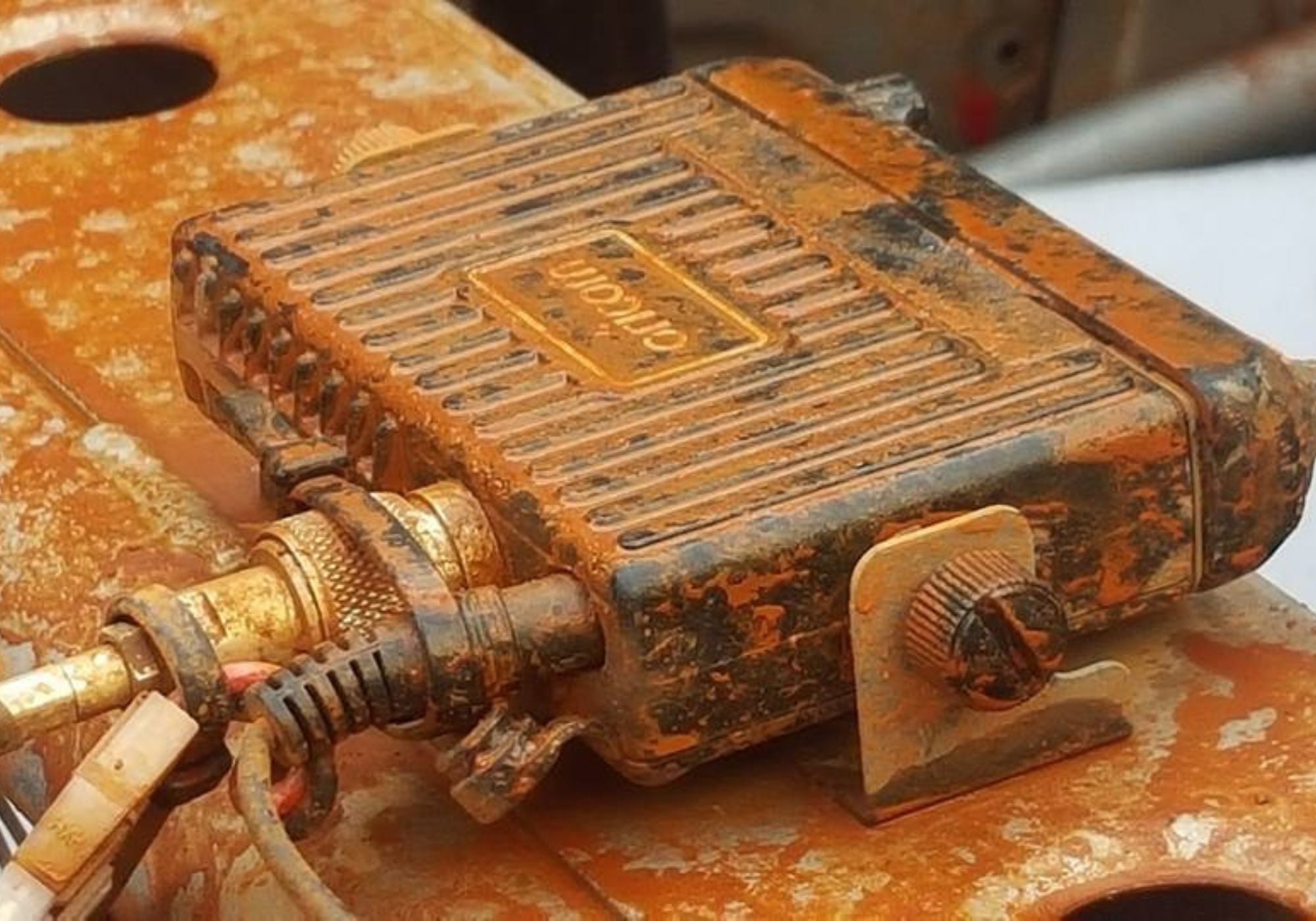

Built Tough, Rain or Shine
Dust and Splash Resistant for Reliable Performance
The DTX4300 features an IP54 rating, protecting it against dust and water splashes so you can stay connected in challenging conditions. Durable and dependable, it’s ideal for off-road adventures, work sites, or any situation where rugged reliability counts.
Additional Information
- Frequently Asked Questions
- Videos Guides
What are the wiring configurations for connecting to the vehicles power supply?
1) Radio stays ON when the ignition is switched OFF: Connect the radio’s negative (black) lead to the vehicle chassis, or directly to the battery’s negative terminal. Connect the radio’s positive (red) lead via the 2 Amp fuse to the battery’s positive terminal. Alternatively, the positive lead could be connected at the fuse box at a point that has DC Power continuously available (preferably the battery side of the ignition switch) via the 2 Amp fuse. 2) Radio turns OFF with the ignition switch: Connect the radio’s negative (black) lead to the vehicle’s chassis, or directly to the battery’s negative terminal. The radio’s positive (red) lead should connect to an accessory point in the vehicle’s fuse box via the 2 Amp fuse.
How do I turn the unit on?
Press and hold the Channel selector.
How do I set the volume level?
Turn the channel selector clockwise to adjust the sound level for comfortable reception. On the microphone push the up or down buttons to increase or decrease the volume. If held down the volume will increase or decrease quickly.
How do I select a channel?
Press the up or down keys to step upwards or step downwards one or more channels.
How do I factory reset this radio?
Turn radio on while pressing the ANT button. There are two reset levels All Reset "AL reset" and All except the user programmed memories "User reset". The reset type can select in menu mode. "All reset" will clear all memory and settings back to the factory default settings. "User reset" will clear all settings except user programmed memory channels they will be preserved.
How do I flip the LCD display?
Rotate channel selector to select filp direction vv or nn.
Is this radio suitable for use outside of Australia?
All Oricom products are approved for use in Australia and NZ only, and although they will still work in other countries, they may not meet that countries requirement’s for voltage, operating frequencies or power RF levels and if used may interfere with other services which could attract penalties from the local administration authorities.
