Product Details
Engineered for Performance. Built for the Harshest Conditions

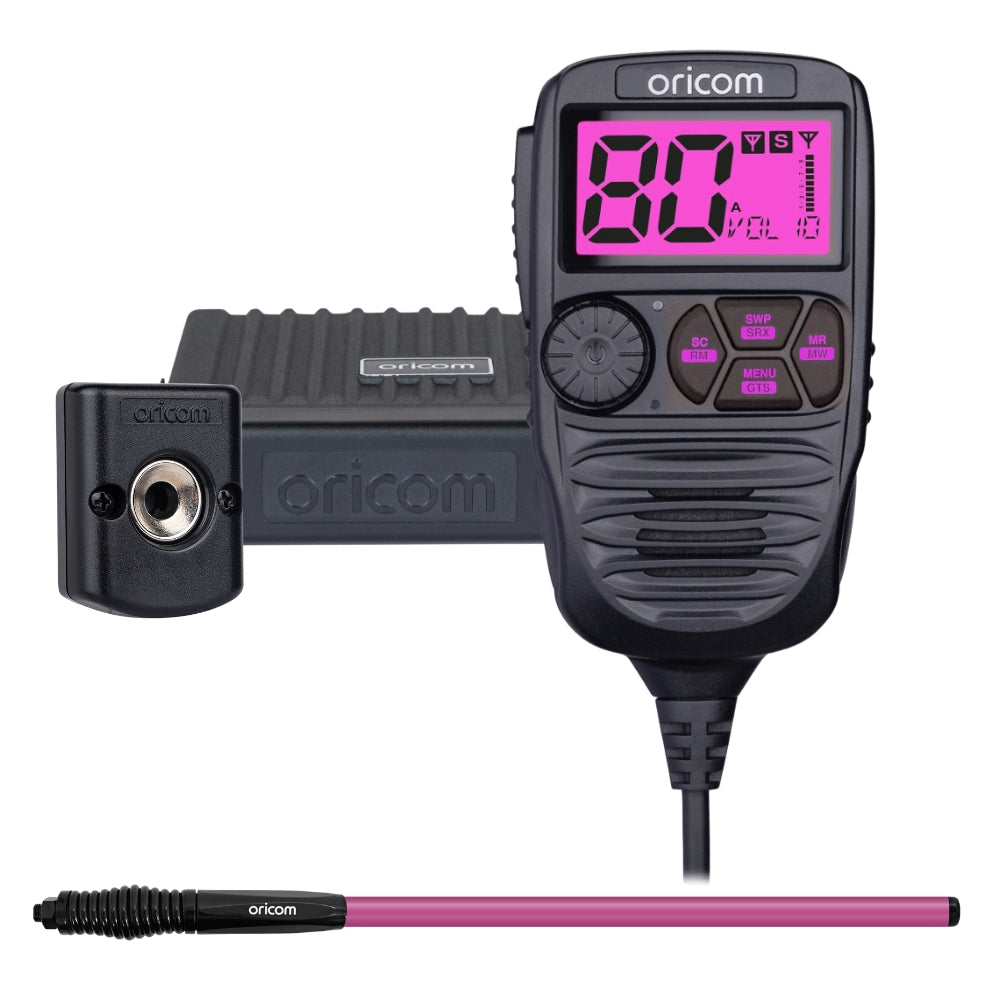

The Oricom Dual Receive Radio is built tough for Australian conditions and delivers superior audio clarity, thanks to enhanced volume and sound quality from both the transceiver and the professional-grade controller microphone. Whether you're on the road, off-grid, or coordinating teams, you’ll hear and be heard, loud and clear.
The ergonomic, heavy-duty microphone is designed to feel solid in the hand and features an extra-large, easy-to-read LCD display with a backlight that's visible in any lighting condition. An intuitive jog wheel makes it simple to navigate key functions, while the IP54-rated chassis ensures resistance to dust and splashes.
DTX4200XP Key Features:
- Dual receive allows you to receive two channels at the same time
- Dual speaker setup in microphone and transceiver for crystal-clear audio
-
Heavy-duty die-cast chassis built to last
-
Large 96-colour backlit display with adjustable brightness
- Fast 80-channel scanning in under 3 seconds
- CTCSS (38) & DCS (104) codes for secure communications
- Slide-in mounting bracket for flexible installation
- Professional-grade controller mic with 2m extension cable included
- Auto power-off & transmit power indicator to conserve energy
- 3.5mm jack for optional external speaker
- Five-year warranty for peace of mind
Dimensions: 31mm (H) x 128mm (W) x 147mm (D)
Antenna Key Features:
Key Features:
- Length of antenna is 665mm*
- Low-loss coaxial cable included (4.5m)
- Pre-terminated FME connector and PL259 adaptor
- 3 Year warranty
*Length of antenna includes spring base.
Files
User guides
Accessories/Spare parts
Product registration
Additional Information
- Frequently Asked Questions
- Videos Guides
I am transmitting on my radio and the other party can’t hear me?
If you are using channels 1 to 8 or 41 to 48 you could be transmitting in Duplex mode, turn DPX off or move to another channel.
What is CTCSS?
CTCSS, or Continuous Tone Coded Squelching System, is an option that allows your UHF radio(s) to only pick up radio signals preceded by a “code”. This option helps to cut down on unwanted radio chatter. This is also known as PL, Private Line, Channel Guard, etc.
If the UHF Radio does not switch on at all?
Check the power lead (wire harness) and fuse.
What is the range of the UHF radio?
The type of antenna you use and where it is mounted on your vehicle will affect the range. A Low gain antenna will give you less range but wider coverage. A high gain antenna will give you greater range but it produces a narrower field which is more directional. Mounting the antenna low on the vehicle will shield the transmission in the directions close to the vehicle, so ideally the antenna needs to be mounted as high as possible.
How far does a UHF radio transmit?
Many factors affect how far a UHF radio will transmit including power of the radio and the environment in which it’s used (e.g. buildings, mountainous and surrounding vegetation can cause range problems).
What is a Repeater?
A Repeater is a Radio Relay Station. It is used when the radio signal needs to be magnified to get the desired distance coverage. It works by receiving a radio signal from one unit, magnifying it and retransmitting the signal to another radio unit. It would be used in an area where coverage was hindered by terrain, buildings or other environmental conditions.
