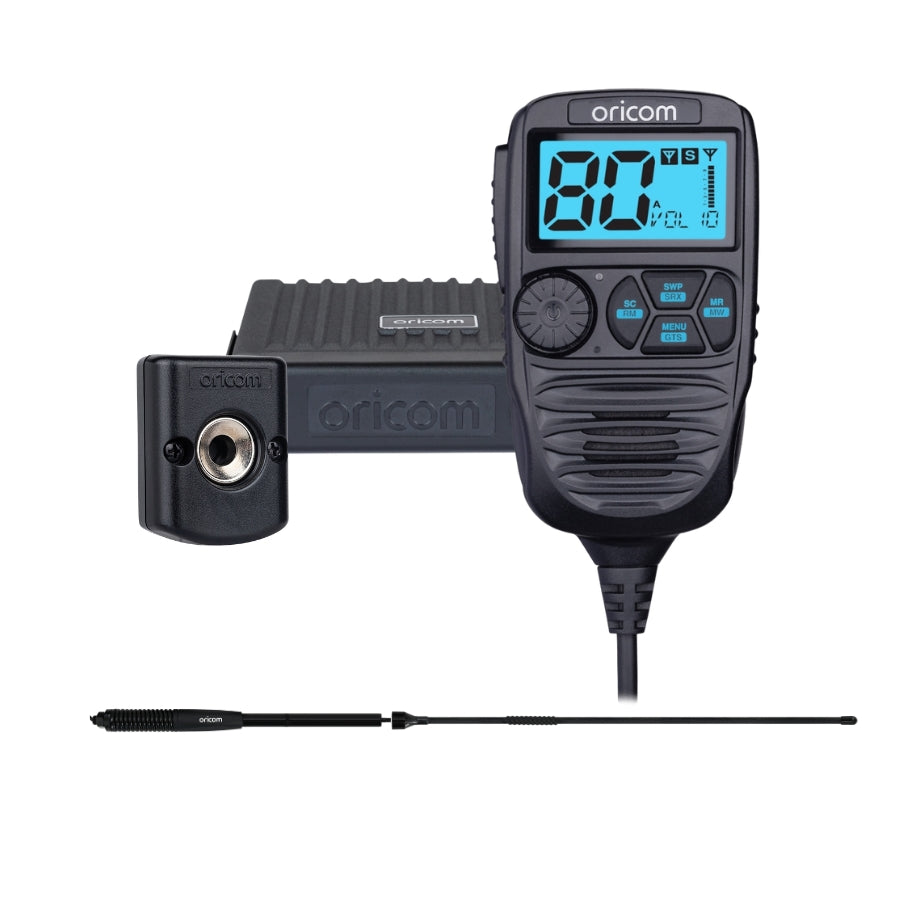

DTX4200XPK IP54 DUAL RECEIVE Ultimate 4x4 Touring Pack
100% Aussie Owned
Free Delivery Over $99
Trusted Local Support
Product Details
The DTX4200XP upgrades include:
BUILT LOUDER
The audio quality and volume has been significantly enhanced to provide Loud & Clear sound from the speakers in both the transceiver and microphone.
BUILT LARGER
Professional grade microphone has been redesigned to be heavier and larger in the hand, with an extra-large easy to read LCD display.
BUILT TO LAST
Designed for Australian conditions and backed by our 5 year warranty.
The DTX4200XP Key Features include:
DTX4200XP Key Features:

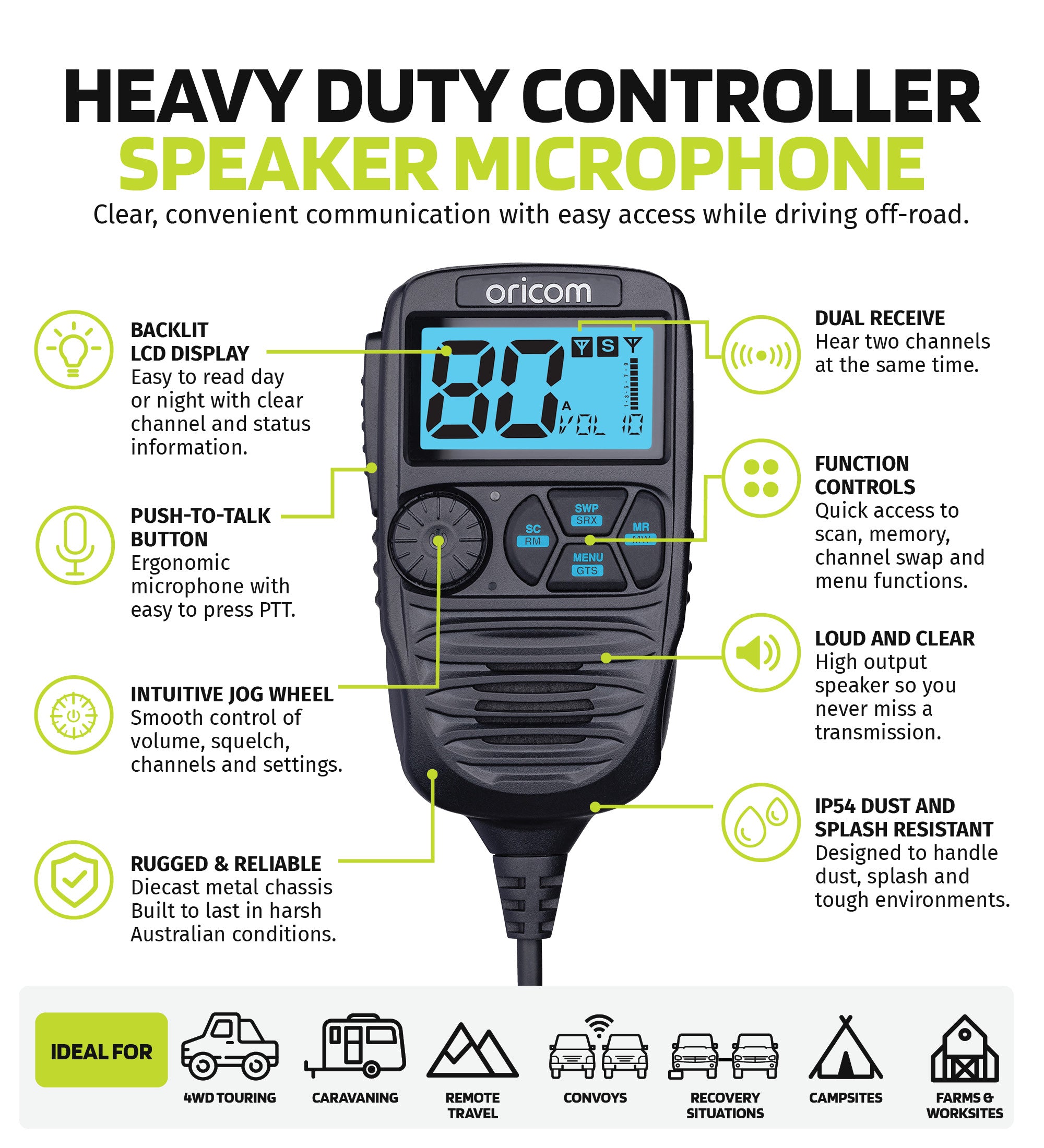

- Ergonomic, professional grade controller speaker microphone
- IP54 Dust and splash resistant
- Loud and clear audio with a speaker in the microphone and the transceiver
- Easy to see extra large backlit display

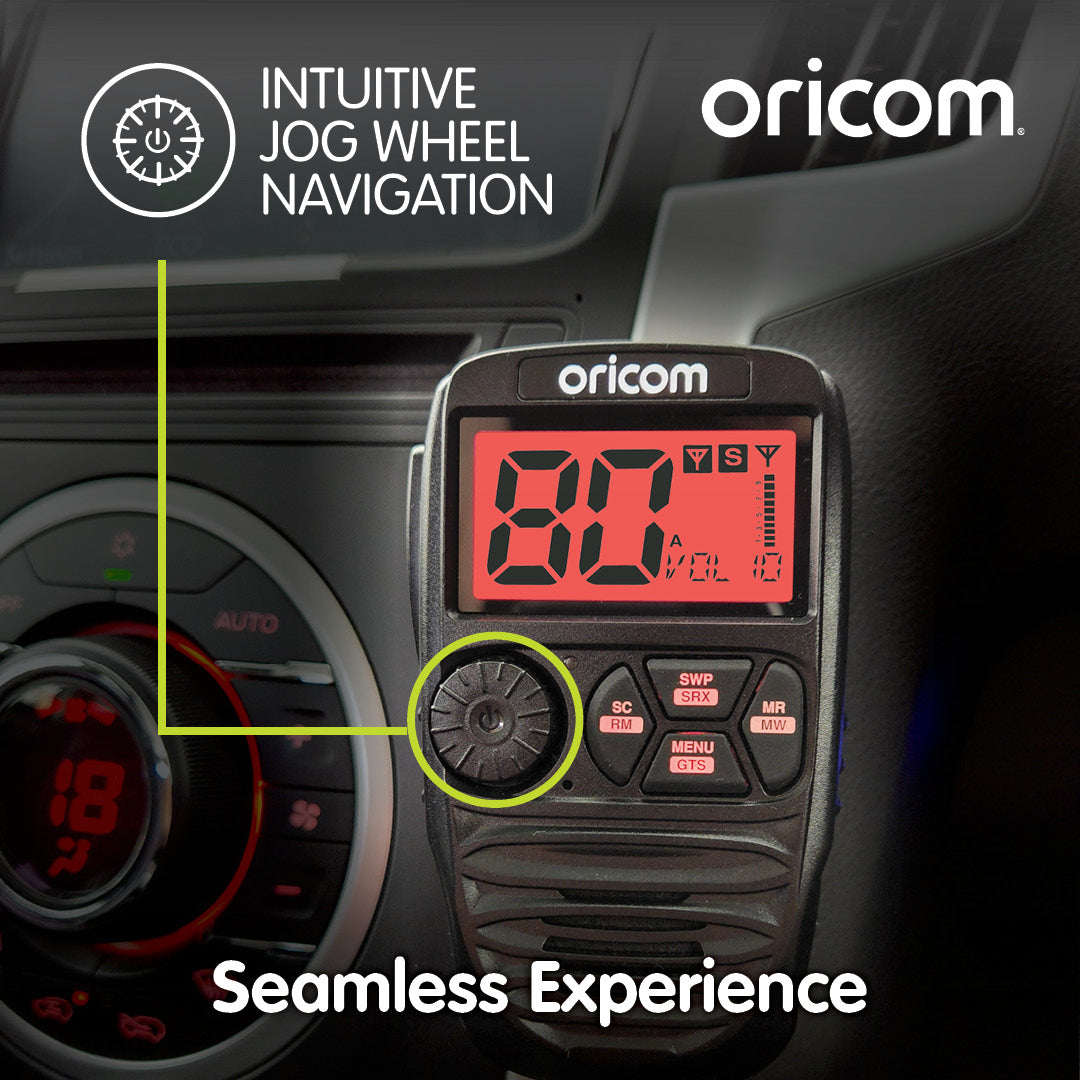

- Intuitive jog wheel to access primary functions
- Heavy duty die-cast metal chassis
- 3 memory groups of 16 channels per group
- Large 96 multi-colour backlit display
- Back light brightness (5 pre-set levels plus auto)
- Fast scanning 80 channels within 3 seconds
- Jog wheel volume/channel and squelch control
- Duplex
- 38 CTCSS & 104 DCS codes
- Transmit power indicator
- Slide-in mounting bracket
- Auto power off (off/1h/2h/4h)
- 3.5mm external jack (for optional external speaker)
- Pack includes: 2 x Microphone extension cables, one for use with pass through connector (not supplied) + 1 x Magnetic Microphone Mount
- Transceiver Dimensions (31mm x 128mm x 147mm)
ANU1100 Antenna:
-
- 3dBi UHF CB Antenna with heavy duty custom spring base (length 430mm)
- 600mm Fiberglass extension whip to convert antenna to a 1m* 6.5dBi high gain antenna
- Coaxial cable (4.5m)
- Includes grub screw and hex key to secure the fiberglass pole
- Transceiver Dimensions (31mm x 128mm x 147mm)
*Length of antenna includes spring base
Files
Product registration
Additional Information
- Frequently Asked Questions
- Videos Guides
I am transmitting on my radio and the other party can’t hear me?
If you are using channels 1 to 8 or 41 to 48 you could be transmitting in Duplex mode, turn DPX off or move to another channel.
What is CTCSS?
CTCSS, or Continuous Tone Coded Squelching System, is an option that allows your UHF radio(s) to only pick up radio signals preceded by a “code”. This option helps to cut down on unwanted radio chatter. This is also known as PL, Private Line, Channel Guard, etc.
If the UHF Radio does not switch on at all?
Check the power lead (wire harness) and fuse.
What is the range of the UHF radio?
The type of antenna you use and where it is mounted on your vehicle will affect the range. A Low gain antenna will give you less range but wider coverage. A high gain antenna will give you greater range but it produces a narrower field which is more directional. Mounting the antenna low on the vehicle will shield the transmission in the directions close to the vehicle, so ideally the antenna needs to be mounted as high as possible.
How far does a UHF radio transmit?
Many factors affect how far a UHF radio will transmit including power of the radio and the environment in which it’s used (e.g. buildings, mountainous and surrounding vegetation can cause range problems).
What is a Repeater?
A Repeater is a Radio Relay Station. It is used when the radio signal needs to be magnified to get the desired distance coverage. It works by receiving a radio signal from one unit, magnifying it and retransmitting the signal to another radio unit. It would be used in an area where coverage was hindered by terrain, buildings or other environmental conditions.
Where are the repeater stations located?
There is a list of repeater stations across Australia. This list and the operational status of the repeaters can change so please check with the ACMA for the latest information on repeaters.
Is this radio suitable for use outside of Australia?
All Oricom products are approved for use in Australia and NZ only, and although they will still work in other countries, they may not meet that countries requirement’s for voltage, operating frequencies or power RF levels and if used may interfere with other services which could attract penalties from the local administration authorities.
