Product Details
Key Features:
- Max Pressure of 150 PSI – High pressure for inflating a variety of tyres with ease.
- Air Flow Rate of 75L/min (0 PSI) – Fast air delivery for quick tyre inflation.
- Pressure Cutoff Switch (90 PSI ON / 120 PSI OFF) – Automatically turns off once the set pressure is reached.
- Thermal Protection (Shuts Off at 115°C) – Prevents overheating by automatically turning off the compressor.
- 6m Hose Length with NPT 1/4" Quick Connect – Provides ample reach for inflating multiple tyres or different vehicles.
- 2.5m Power Cable with Battery Clamps – Connects directly to your vehicle’s battery for reliable power.

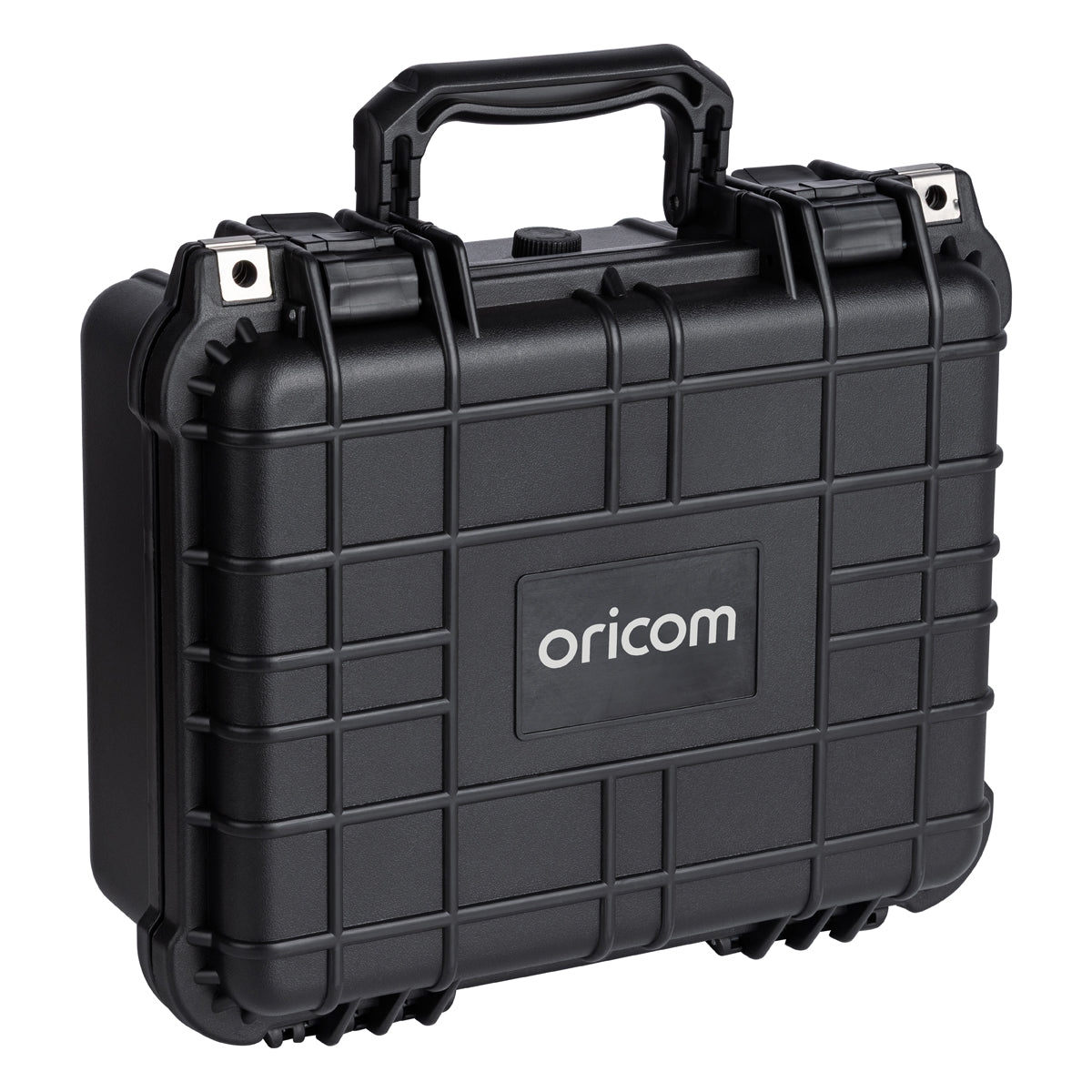

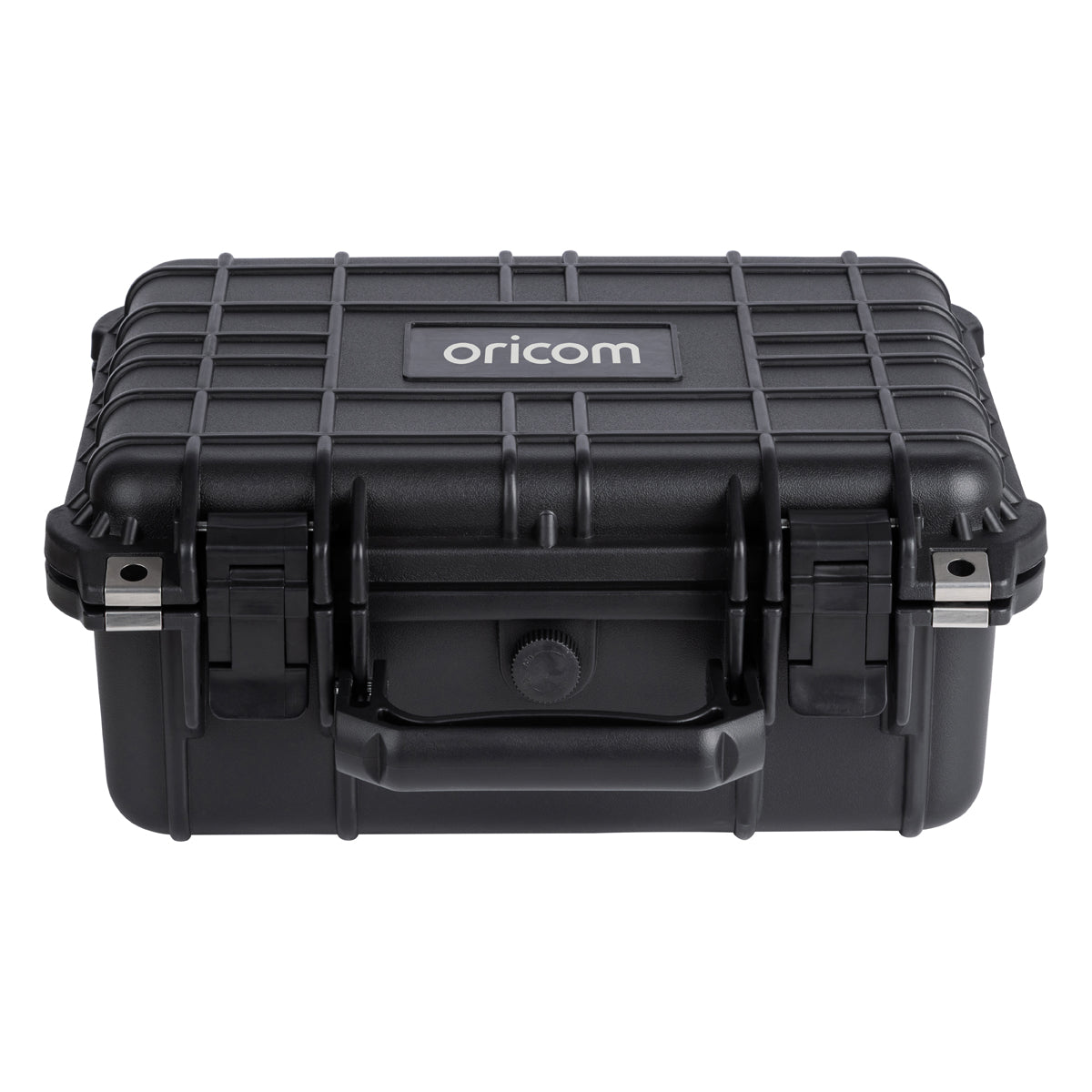

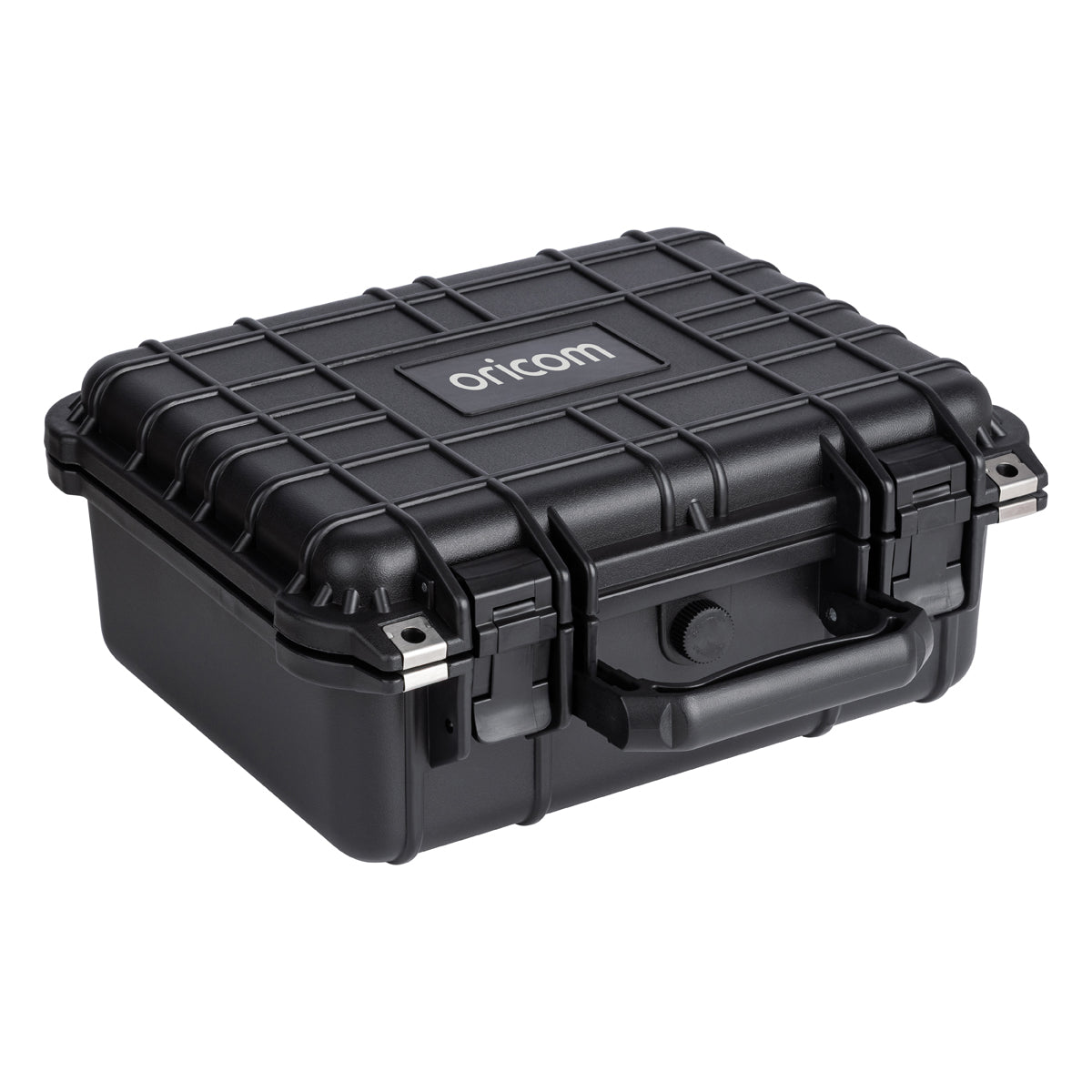

- Heavy Duty Carry Case – Convenient storage and portability for the
compressor and accessories. - Compatible with Oricom's tyre inflator and deflator.

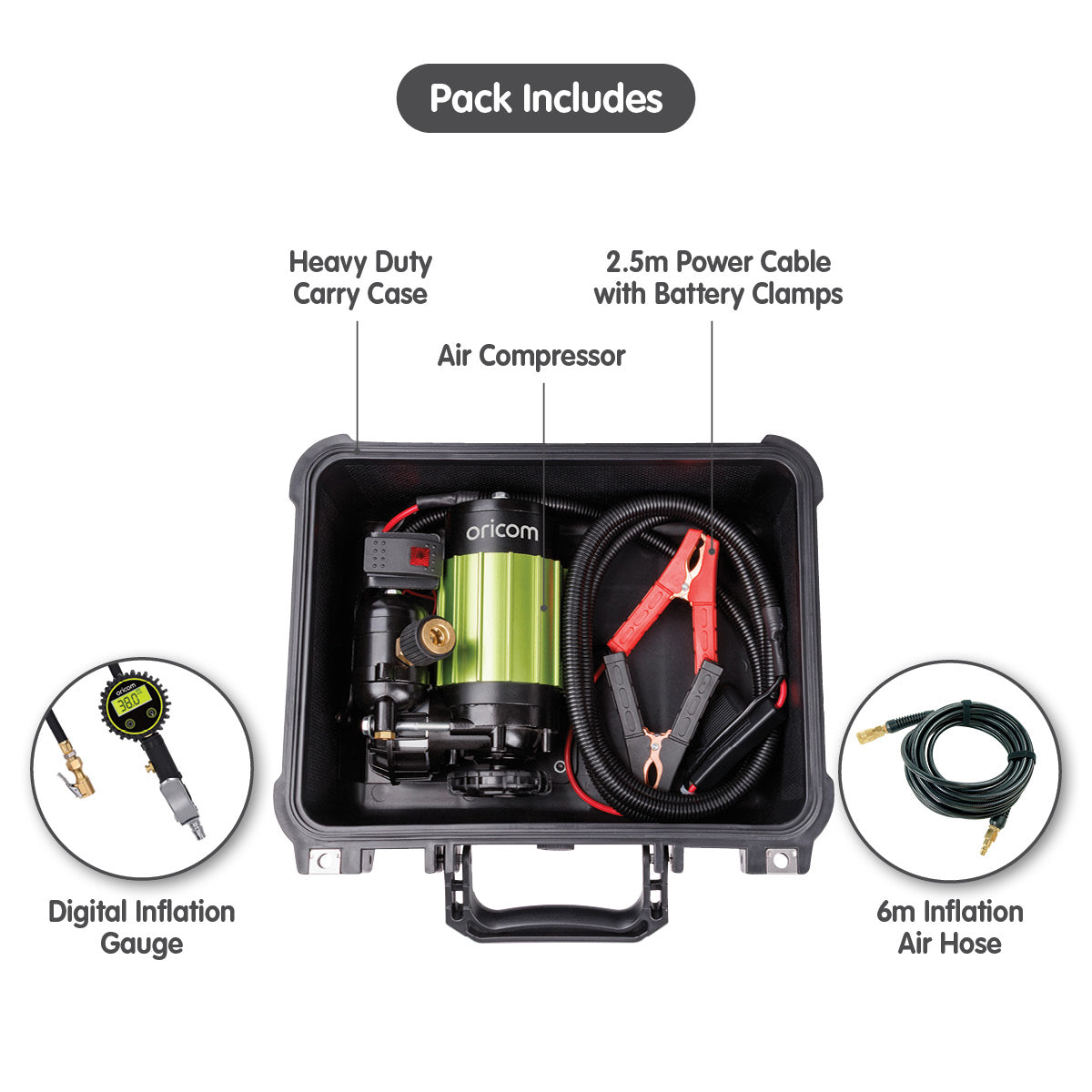

Pack Includes:

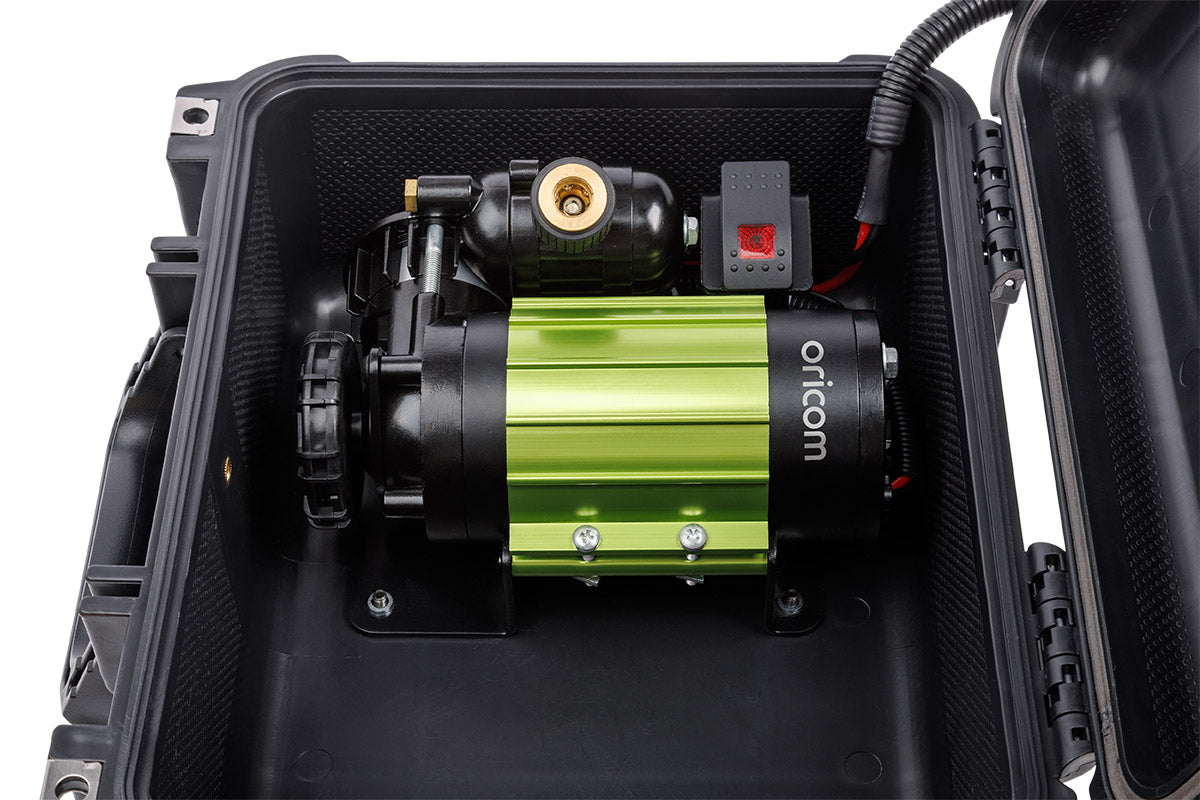

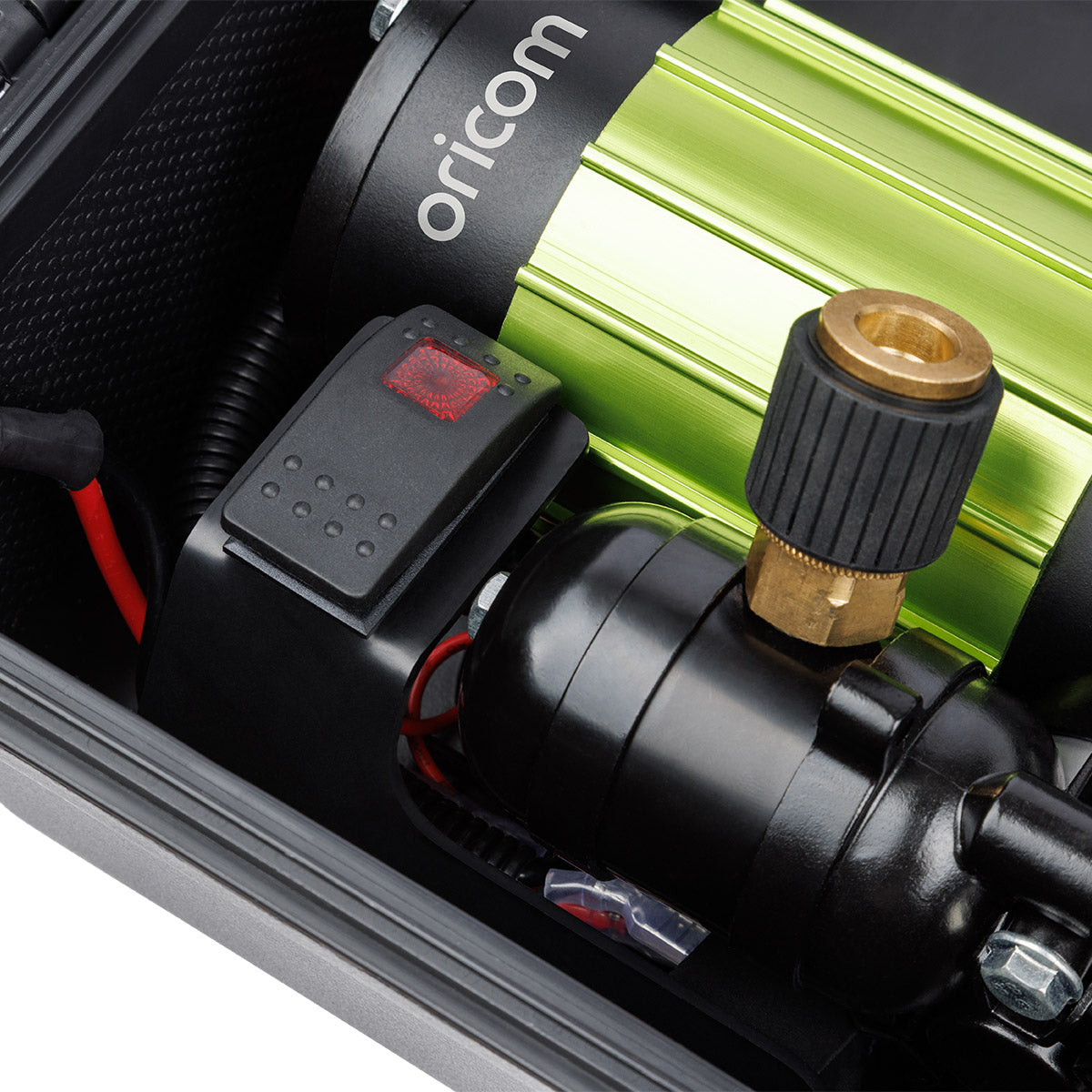

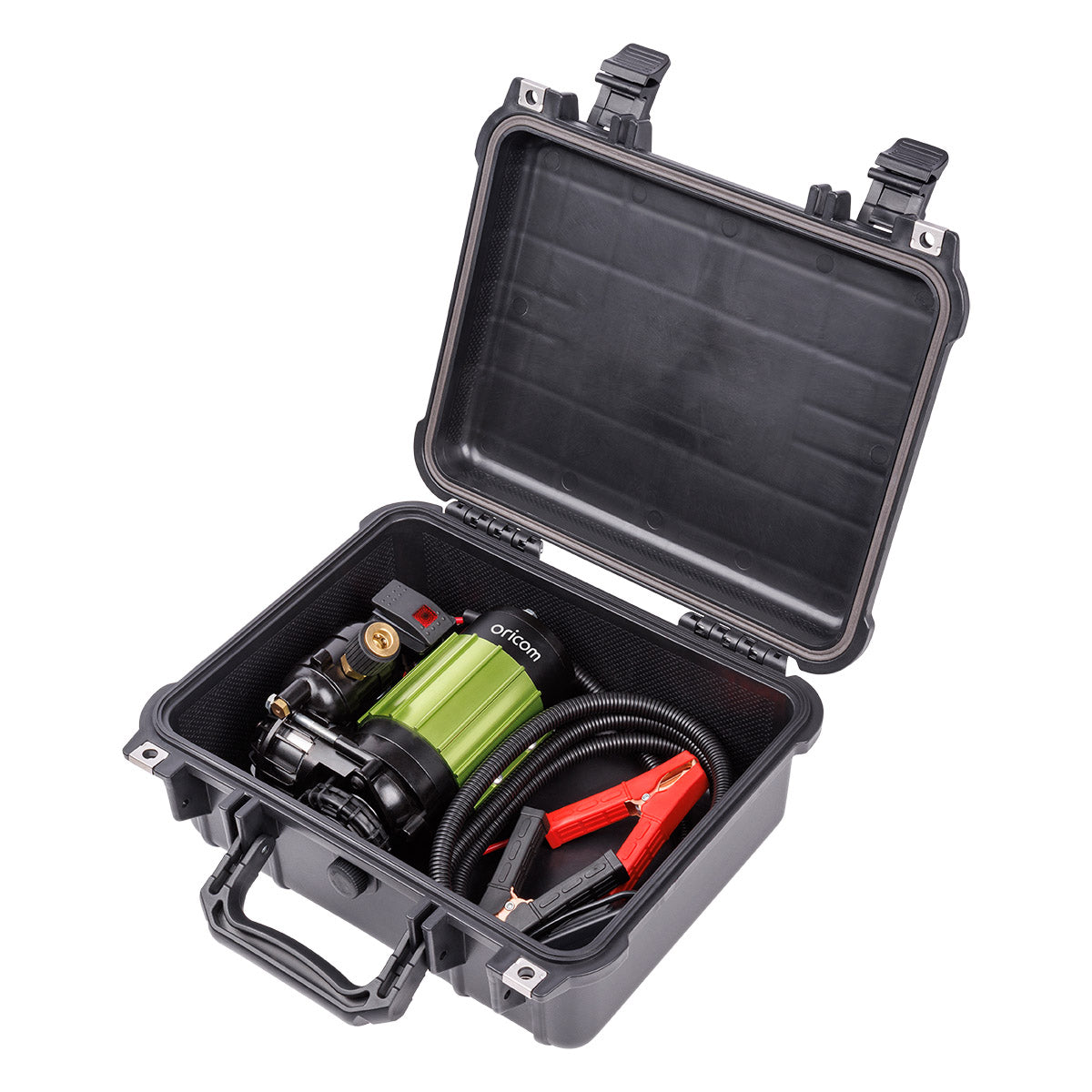

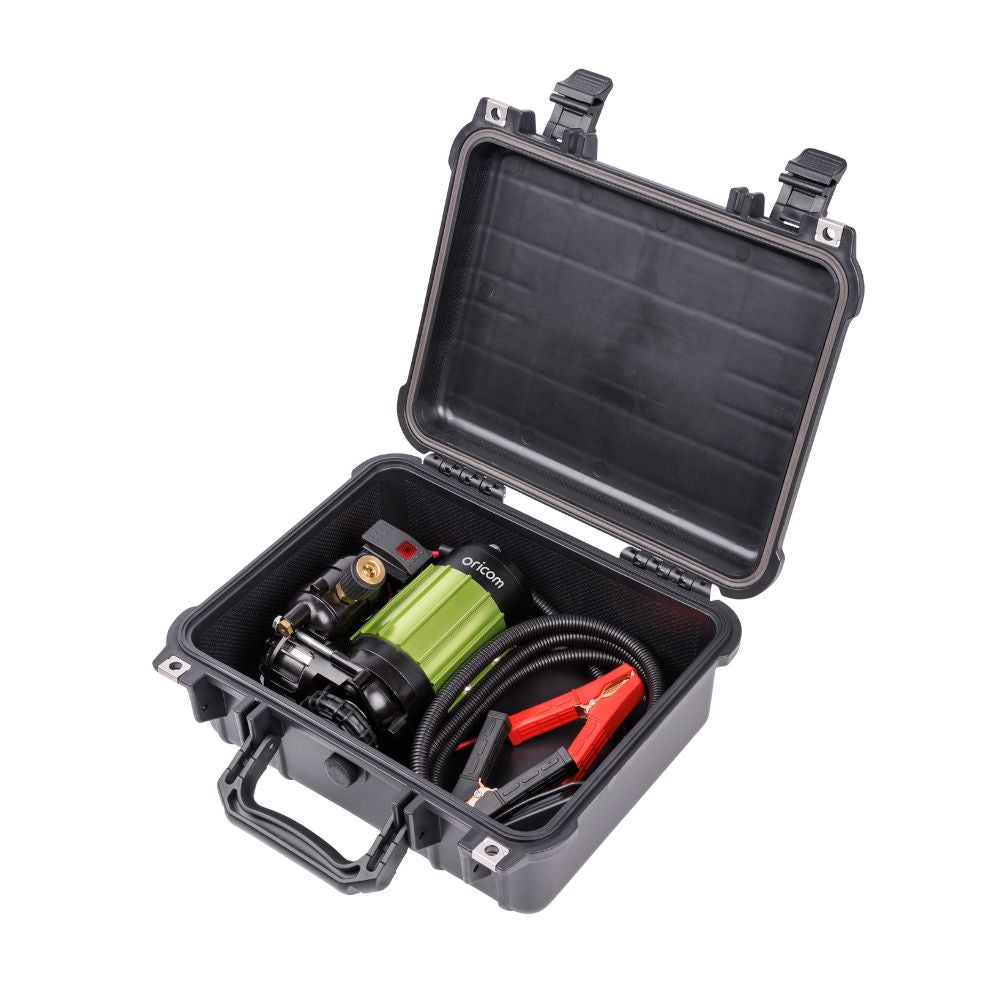

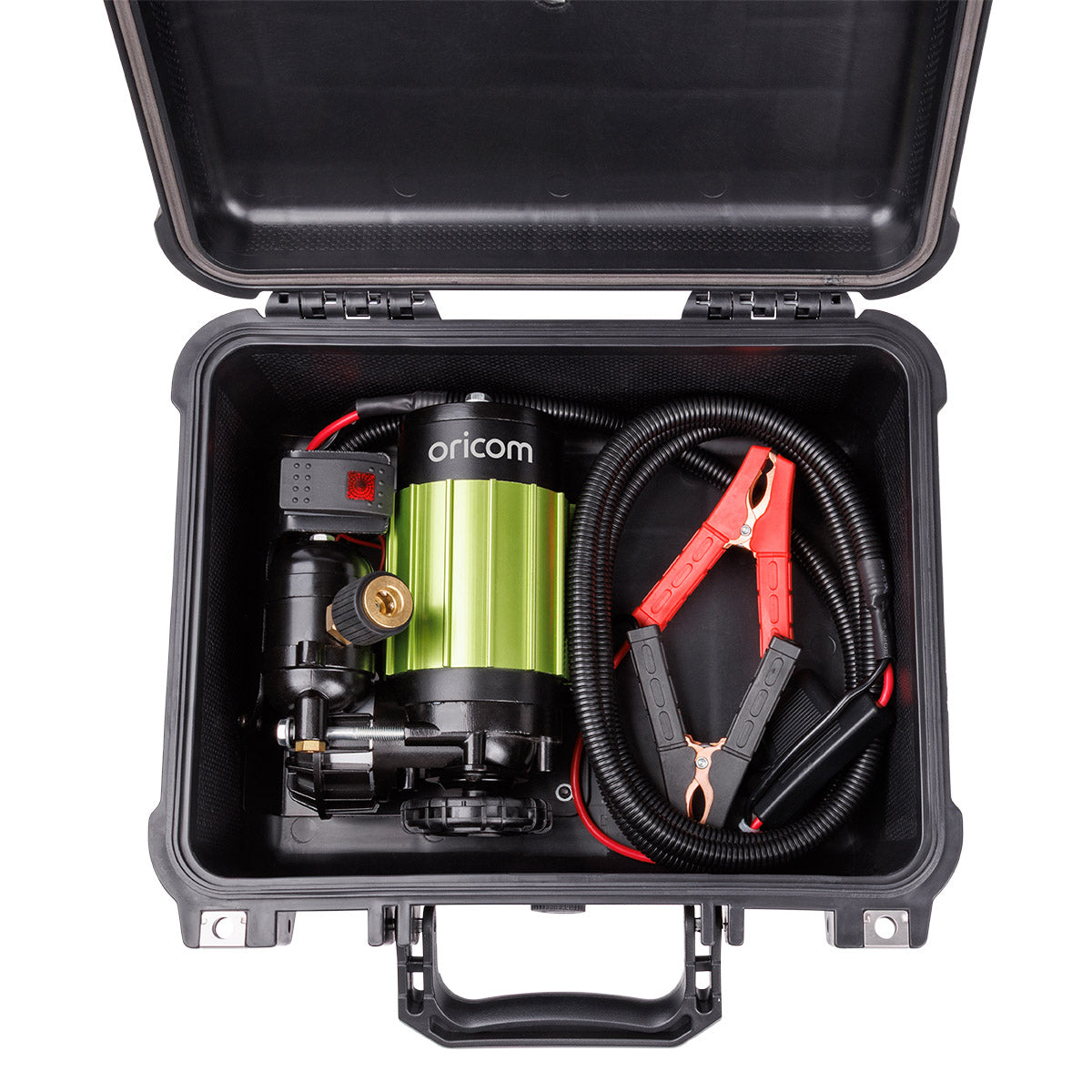

- 1 x Air Compressor with heavy duty case

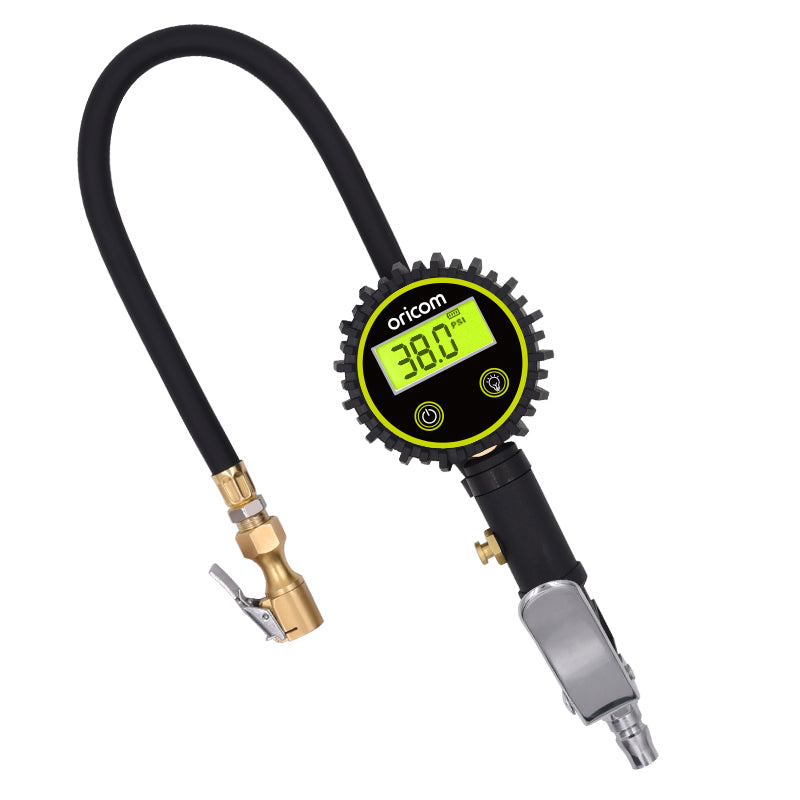

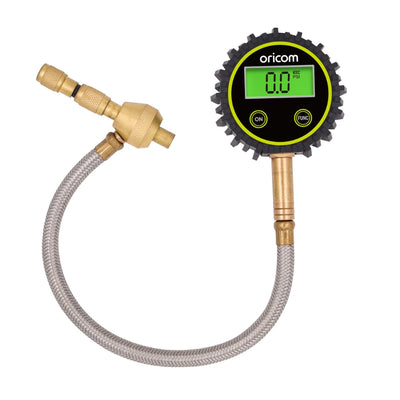

- 1 x Digital Pressure Gauge with auto shut off

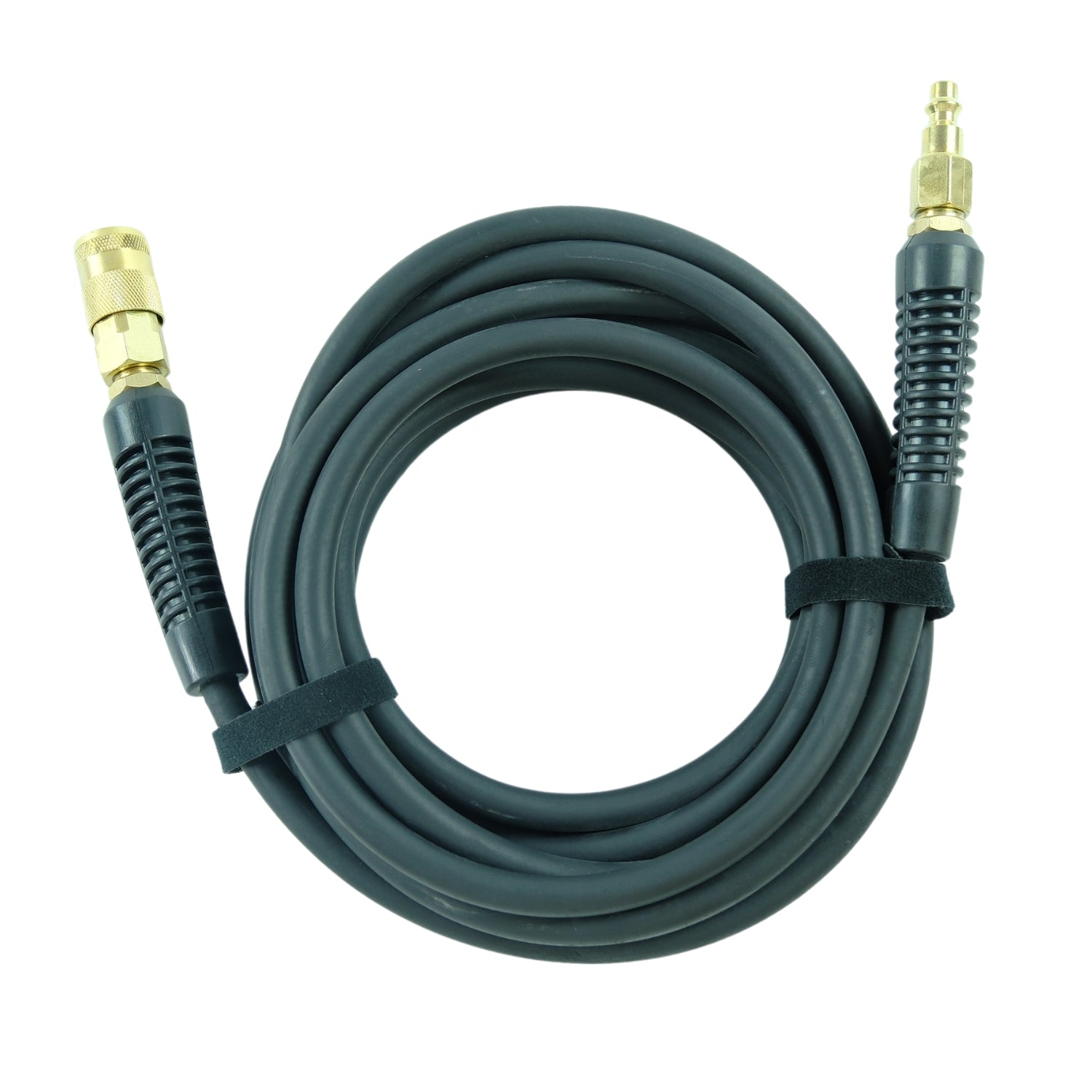

- 1 x 6m Inflation Hose with ¼" NPT quick connect fitting

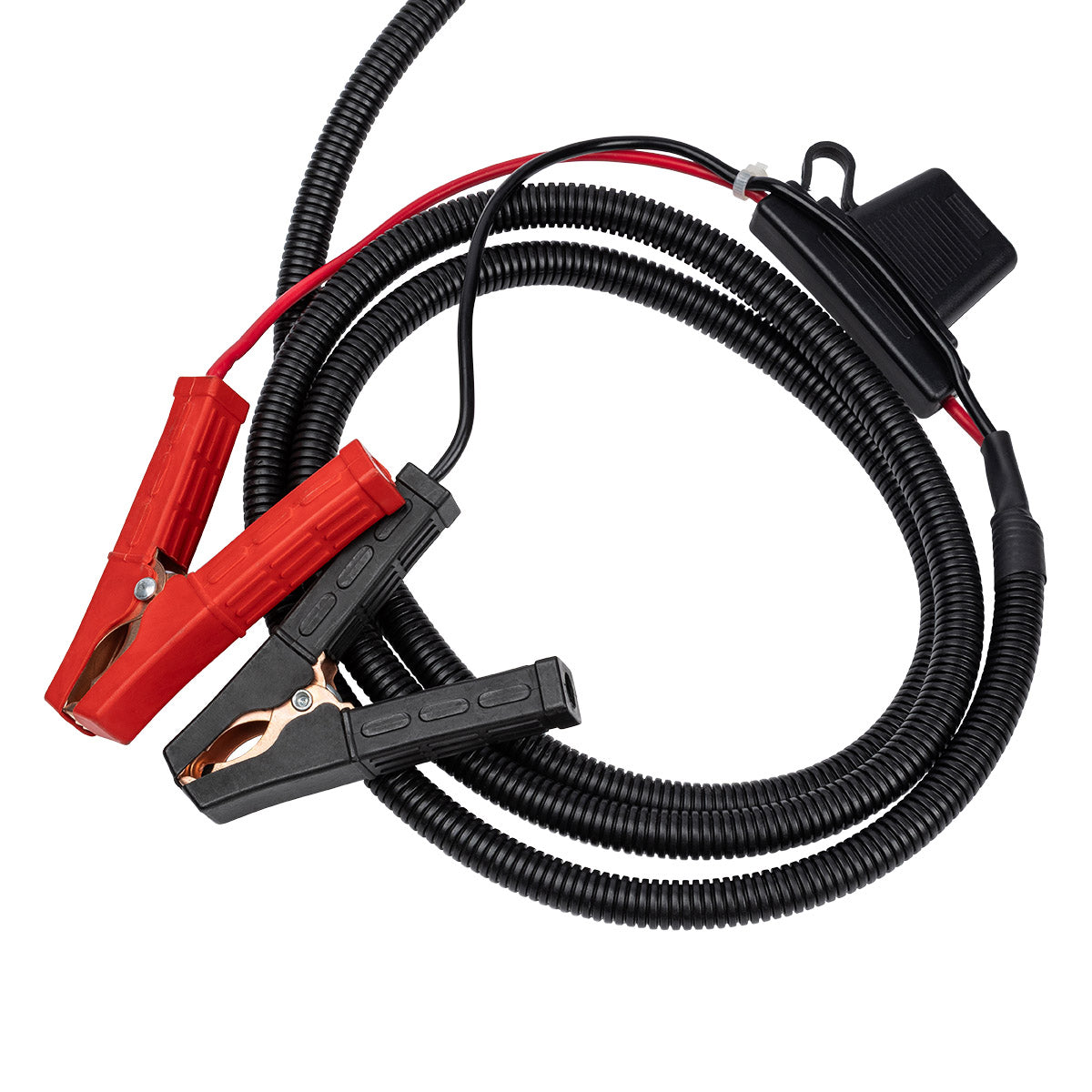

- 1 x 2.5m Power Cable with battery clamps
Specifications:
- Number of Cylinders: 1
- Cylinder Diameter (Bore): 44mm
- Voltage: 12-13.8VDC
- Current Draw Under Load: 32A
- Current Draw No Load: 17A

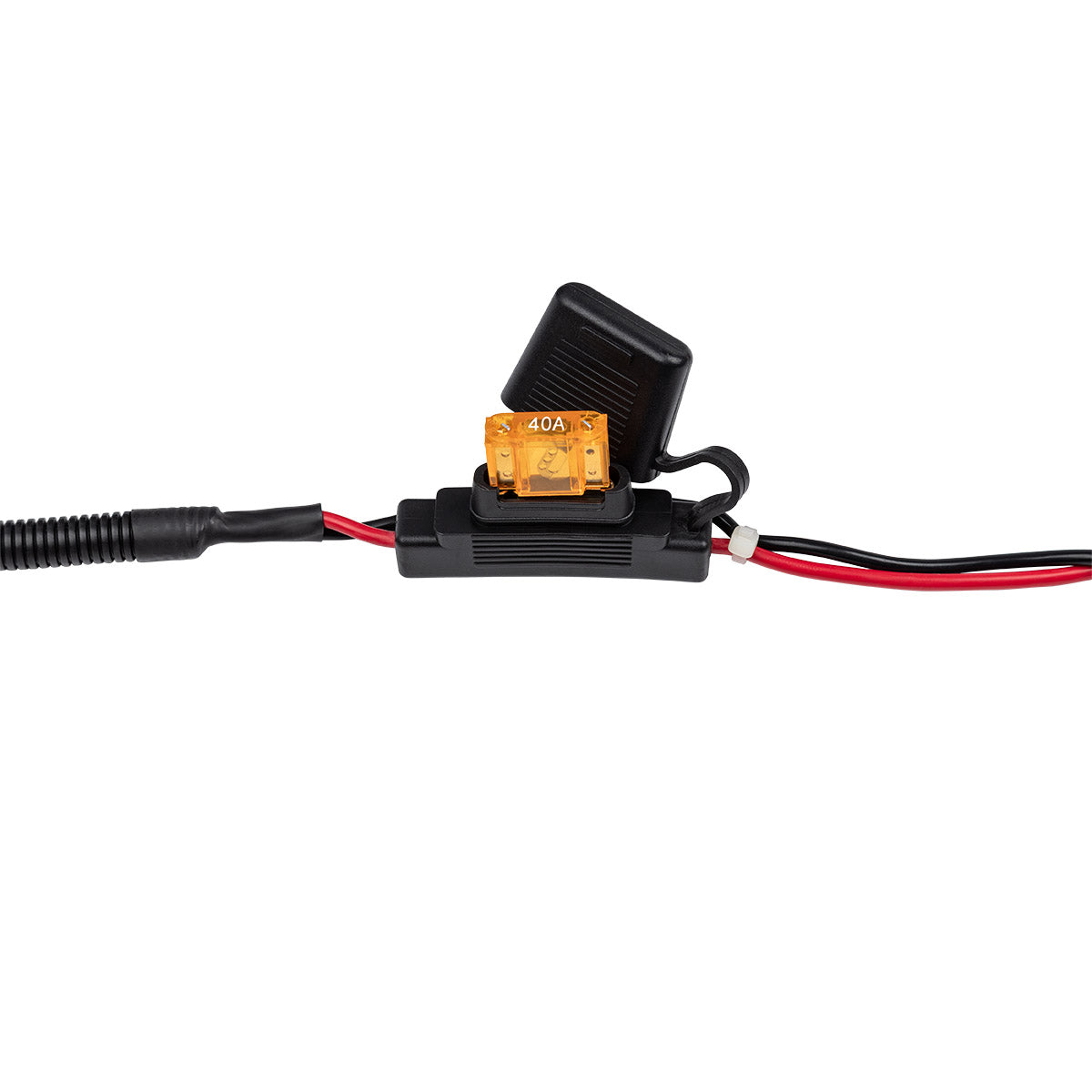

- In line Fuse Supplied: 40A
- Air Filter: Yes
- Max Pressure: 150PSI
- Max Working Pressure: 120PSI
- Duty Cycle Working 20mins - Rest 40mins
- Air Flow Under Load: 42L/min(40PSI)
- Air Flow Rates: 75 L/min (0PSI) 50 l/min (29PSI)
- Pressure Cutout Switch: 90PSI ON /120PSI OFF
- Thermal Protection: Automatically shuts off at 115°C to prevent overheating
- Connection to Battery: 2.5m Cable with Battery Clamps
- Hose Length: 6m
- Hose Connector Type: NPT ¼" Quick Connect
- Carry Case: Included
- Product Dimensions (cm): 35 x 29.5 x 16
- Weight: 7.3kg
- Warranty: 3 Years
Tested to meet safety standards: AS/NZS 60335.1:2020-tAl:2021 ond EMC compliant with EN/IEC 55014-1:2021
Files
User guides
Product registration
Additional Information
- Frequently Asked Questions
- Videos Guides
What makes the Oricom AIR40 Twin Cylinder Air Compressor ideal for 4WD use?
The AIR40 is built for serious off-road performance, with a high 300PSI max pressure and 130L/min airflow to inflate large 4WD tyres quickly. Its thermal protection , automatic pressure shut-off , and rugged twin-cylinder design make it perfect for harsh Australian conditions.
How fast does the Oricom AIR40 inflate tyres?
With a powerful 130L/min airflow at 0 PSI , the AIR40 inflates tyres significantly faster than standard single-cylinder units. It’s perfect for reducing downtime when adjusting pressures for sand, rock, or highway driving.
Does the AIR40 have an automatic shut-off feature?
Yes. The AIR40 features an automatic shut-off pressure switch that cuts out at 120–150 PSI , ensuring safe inflation without the risk of overinflating tyres or damaging the compressor.
Is the Oricom AIR40 compressor safe to use for extended periods?
Absolutely. The AIR40 includes a thermally protected motor , designed to prevent overheating during continuous use. It also operates on a 45-minute duty cycle , followed by a 20-minute rest for optimal longevity.
What’s the difference between the Oricom AIR20, AIR30, and AIR40 air compressors?
The AIR20 is a compact single-cylinder compressor ideal for light-duty inflation. The AIR30 offers faster inflation with a larger motor and higher airflow. The AIR40 is a powerful twin-cylinder unit with 130L/min airflow and 300PSI max pressure , designed for fast inflation of 4WD and off-road tyres. Each model is suited to different vehicle types and inflation needs.
Which Oricom air compressor is best for 4WD tyre inflation?
The AIR40 is the best choice for serious off-roaders. Its twin-cylinder design and high-flow rate make it ideal for quickly inflating large tyres after deflating for sand, rocks, or mud. For smaller vehicles or occasional use, the AIR20 or AIR30 are more compact and efficient options.
Are Oricom compressors compatible with tyre deflator kits?

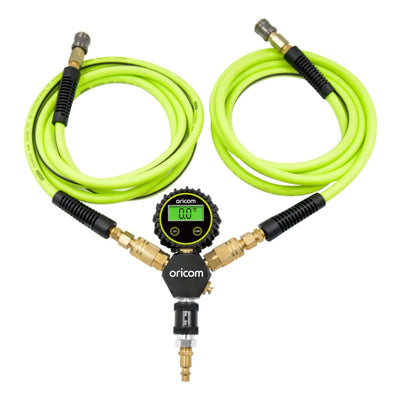

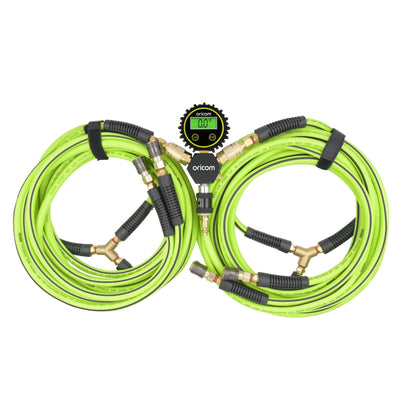

Yes. All Oricom air compressors are designed to work seamlessly with Oricom's tyre deflator and inflator kits , including single, twin, and quad-pack systems. These kits allow you to deflate or inflate multiple tyres quickly and accurately, especially useful for off-road adventurers.
Do Oricom air compressors come with an automatic shut-off feature?
The AIR40 features an automatic pressure cut-off switch (120–150 PSI) for added safety and convenience. The AIR20 and AIR30 may require manual monitoring, so always check the product specifications for the model you're purchasing.
What power source do Oricom compressors require?
All Oricom air compressors operate on 12–13.8V DC power , connecting directly to your vehicle’s battery using the included wiring loom and in-line fuse. This makes them suitable for use in 4WDs, utes, and other vehicles while travelling.
Are the air filters in Oricom compressors washable?
Yes. Models like the AIR30 and AIR40 come with washable air filters , which reduce maintenance and allow for extended use in dusty or dirty environments. Always refer to the user manual for cleaning instructions.
Do Oricom air compressors come with a warranty?
Yes. All Oricom air compressors are backed by a 3-Year Warranty , offering peace of mind and confidence in durability. Oricom is a 100% Aussie owned brand , known for reliable automotive solutions and local customer support.
