- Ground Independent
- Solid Construction
- Interchangeable Top Antenna
- 4.5m Of Cable + PL259 Connector
- Stainless Steel, PVC & Brass
- 6.5dB gain
- SWR < 1.5 to 1 over 12Mhz
- No tuning Required
ANU200 6.5dBi UHF CB Antenna

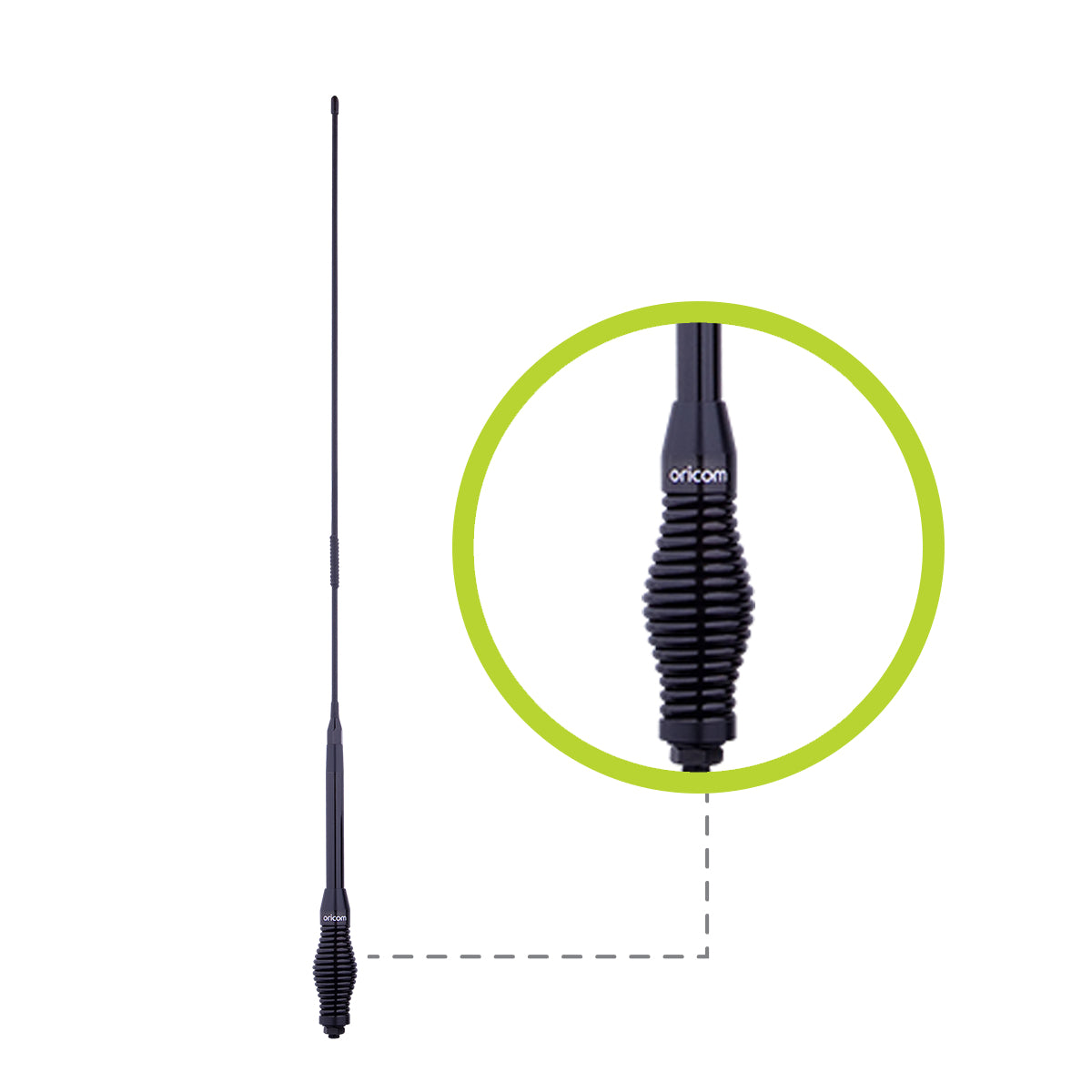

A 6.5dbi antenna with elevated feed, counter balanced spring and solid black fiberglass whip. The counter balanced spring is designed to absorb the vibrations from the engine and/or rough corrugated roads for better performance.
This unit include 4.5m of low-loss coaxial cable and a PL259 connector.
This antenna configuration is by far the most popular on the Australian market. Ideal for use in off-road conditions with four-wheel drives, or for vehicles with diesel engines.
This antenna allows for a variety of mounting options from bullbar, gutter to wing mount. A specific bracket will be required depending on the mounting option chosen (bracket not supplied). The 6.5dBi high-gain low SWR antenna gives the best “all-round” transmit and receive performance.
Length including spring and base: 83cm
Q. What factors should I take into account when purchasing an antenna?
A. When choosing an antenna, it is important to consider the terrain in which the antenna is to be used and match the best radiating pattern for the environment.
– A 3dBi antenna has a wide pattern, ideal for undulating terrain.
– 6-6.5dBi antennas are popular due to their performance over distance on flatter or slightly uneven terrain.
Q. What is the range of a UHF CB Radio?
A. The range of a UHF CB radio is usually determined as the combined line of sight of both stations. UHF radio signals travel in straight lines between the radios and anything in between will attenuate the signals and in some cases, stop them altogether.
Q. How does the environment affect the range of my UHF CB radio and antenna?
A. The range of your UHF CB radio is more of a question of what is between the stations.
The attenuation of the signal in free air is very low, as moisture is added the attenuation becomes greater (anyone with satellite TV would have seen rain fade). Trees and other types of vegetation also contain water so a signal through a plantation or forest of trees will also be attenuated to some degree if not completely lost.
Q. What role does elevation play in the range of a UHF CB Radio?
A. There is an easy answer to the range question and that is “elevation is your friend”. Elevation improves the line of sight to the horizon it is also good if you are on the road and trying to communicate with another station a few vehicles in front of you, it may not be possible to talk between two handhelds but once you put an antenna outside and higher than the roof of the car communications might be possible, just a little elevation can make a big difference.
The advertised gain of an antenna is not the antenna amplifying the signal but just collecting or sending the signal in a specific direction, just like focusing a torch light the bulb produces the same amount of light, but the lens focuses it in to a narrow beam of light. With this in mind if the antenna is too directional, then you may not hear stations that are not in the reception “window” of the antenna.
Most UHF CB antennas are vertical poles and send the signal out in a circular pattern around the antenna (like a donut shape with the antenna in the middle) if an antenna has more gain this donut is flattened between the top and bottom so more signal is concentrated in horizontal direction. This is great if the other station is directly in front at a 90° angle to the antenna then all the signals are collected from that station but if they are on top of a hill at 45° angle then they may not be in the reception “window” of the antenna and therefore the signal may be very weak.
